Suspension Position Sensor - Left Front
Suspension Position Sensor - Left Front
Component Connector End Views

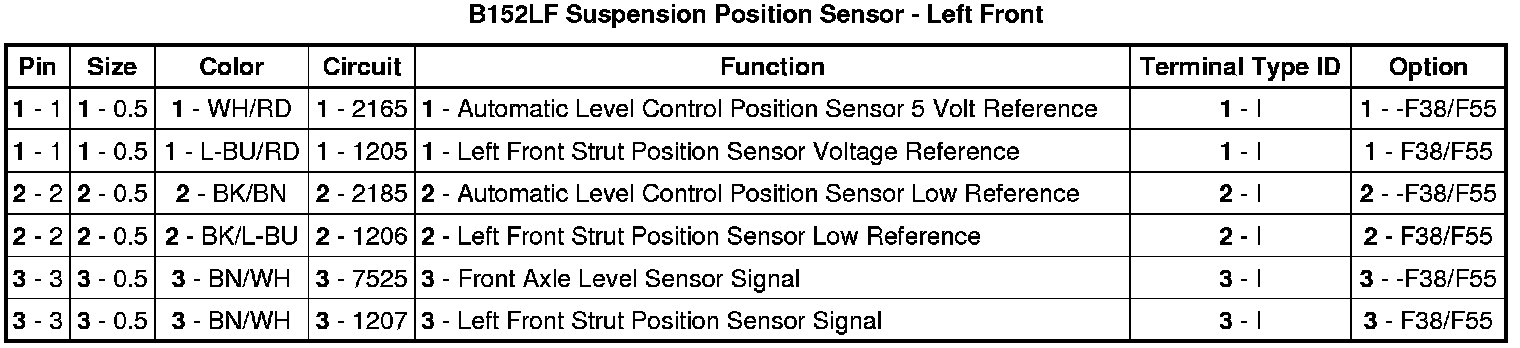

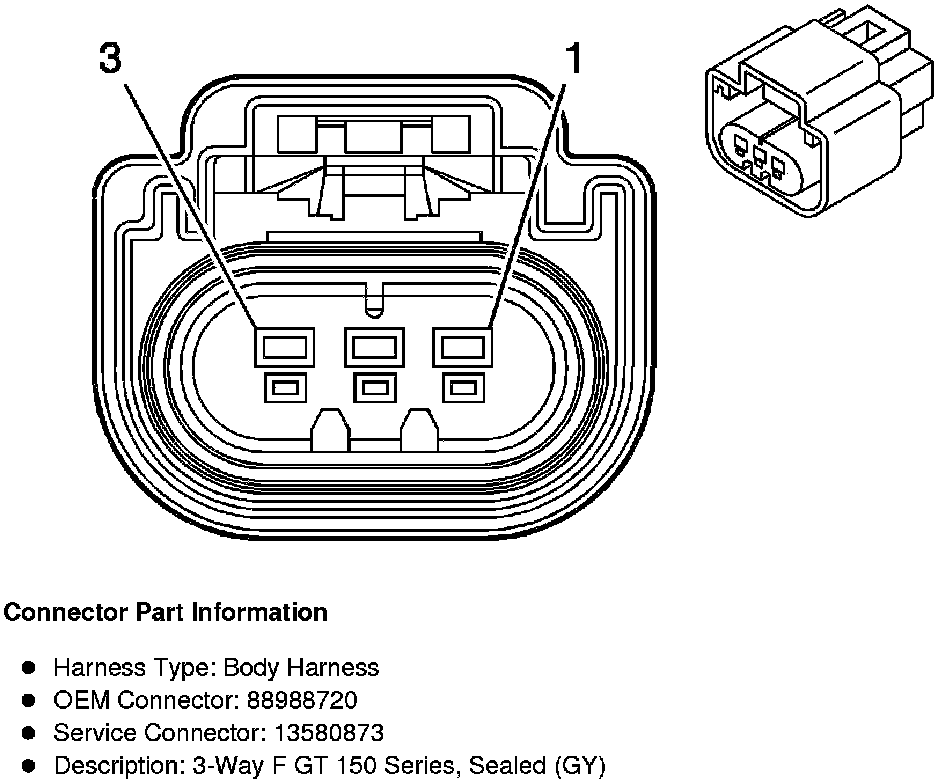

B152LF Suspension Position Sensor - Left Front
