Speaker - Right Rear Window Shelf (UQS)
Speaker - Right Rear Window Shelf (UQS)
Component Connector End Views

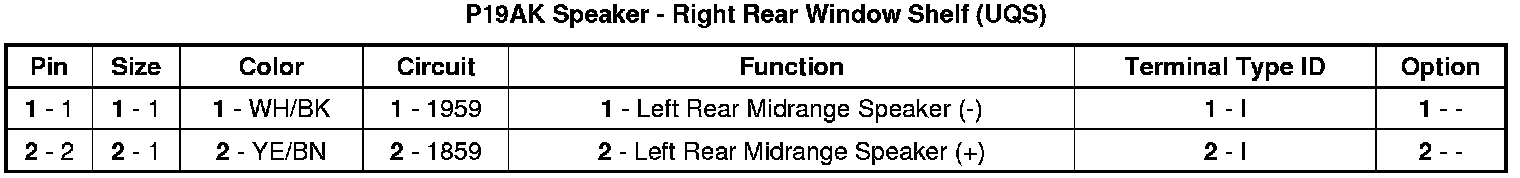

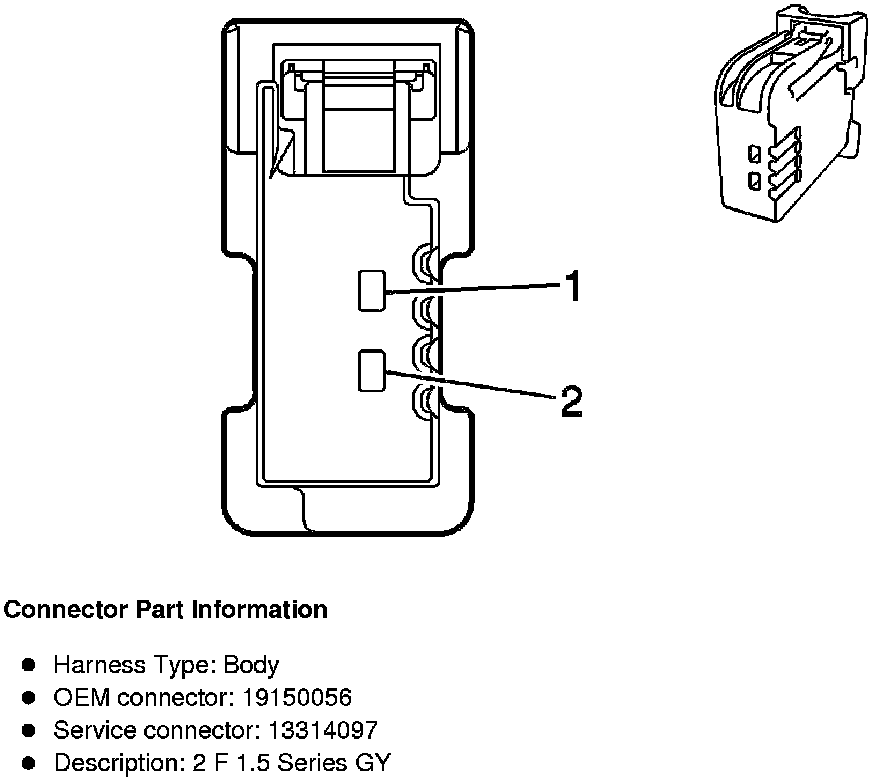

P19AK Speaker - Right Rear Window Shelf (UQS)
