Home
>>
Cadillac
>>
2013
>>
XTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Shock Absorber Actuator - Left Front
Shock Absorber Actuator - Left Front
Component Connector End Views

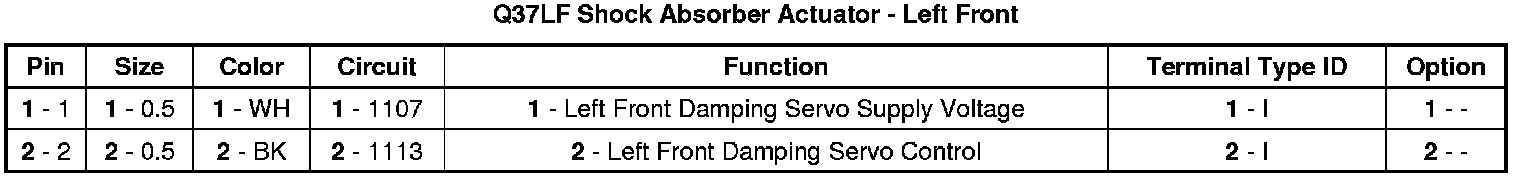

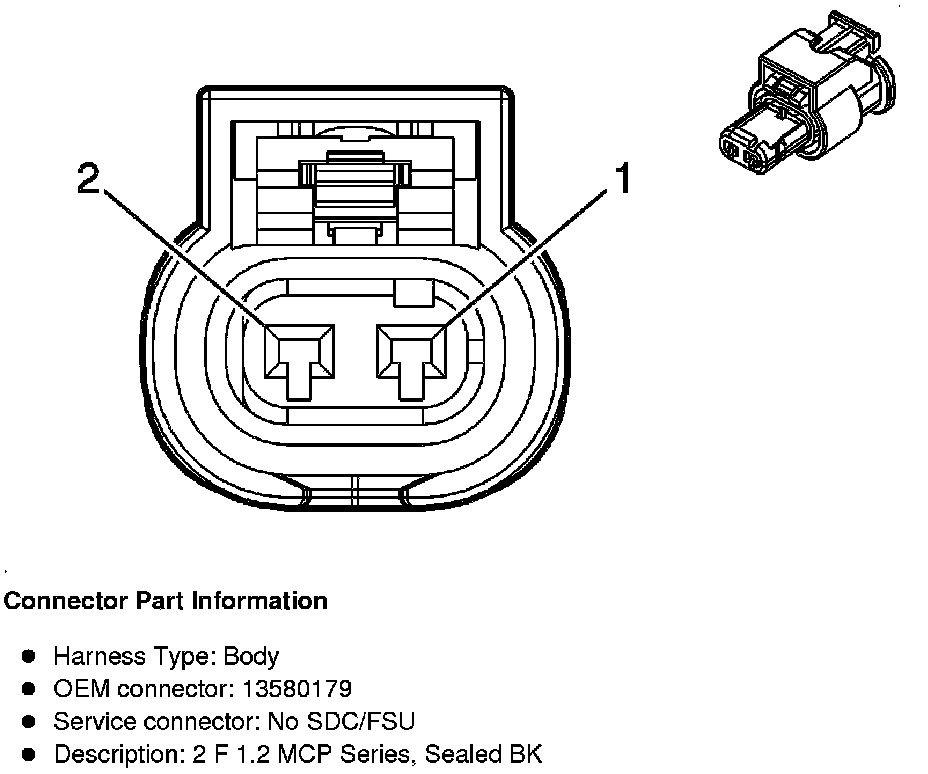

Q37LF Shock Absorber Actuator - Left Front
