Seat Heating Element - Driver Cushion (KA1)
Seat Heating Element - Driver Cushion (KA1)
Component Connector End Views

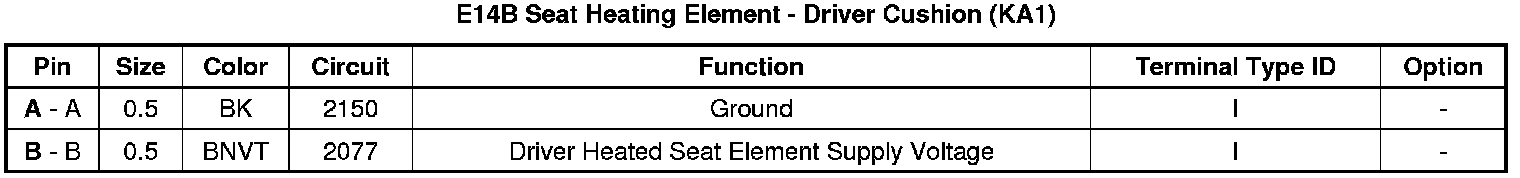

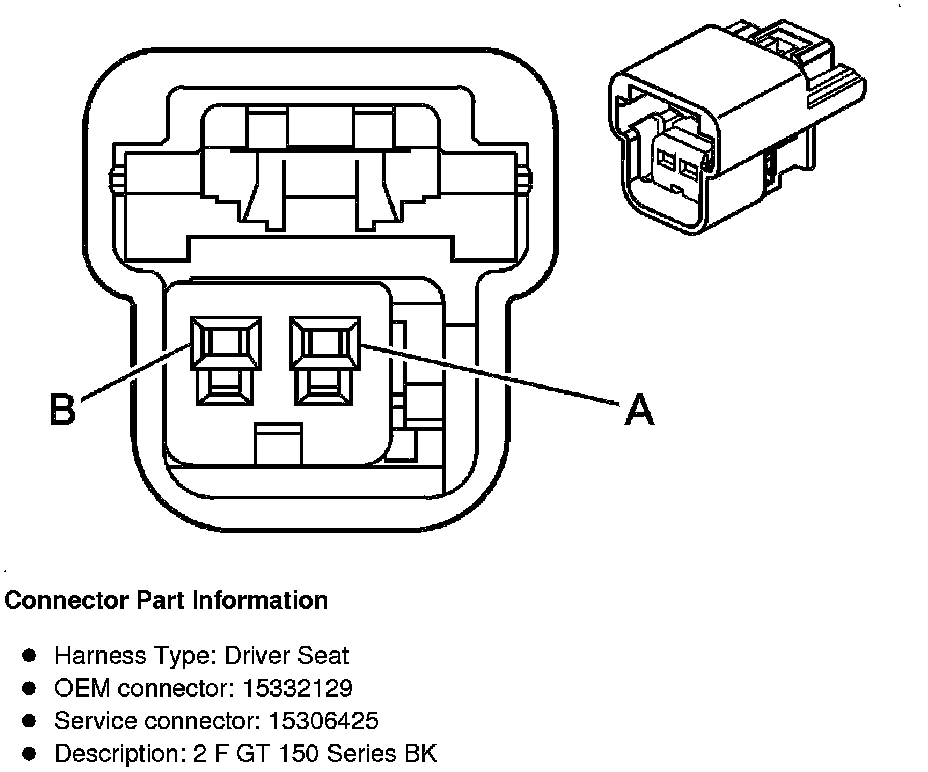

E14B Seat Heating Element - Driver Cushion (KA1)
