Seat Belt Buckle Pretensioner - Passenger
Seat Belt Buckle Pretensioner - Passenger
Component Connector End Views

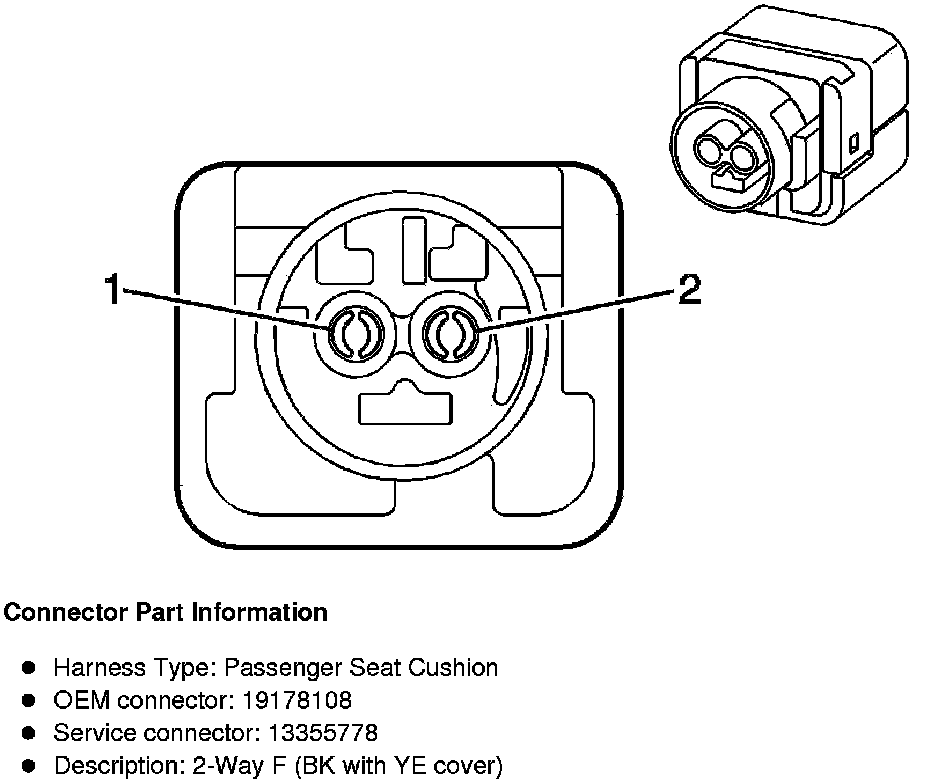

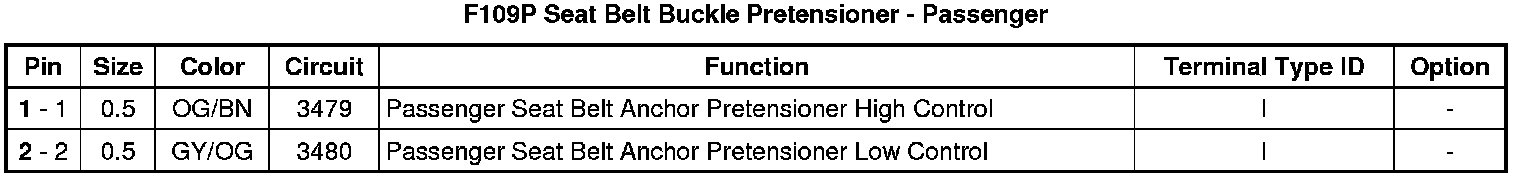

F109P Seat Belt Buckle Pretensioner - Passenger
