Radio Volume Compensator Interior Noise Microphone - Right Front (VQS)

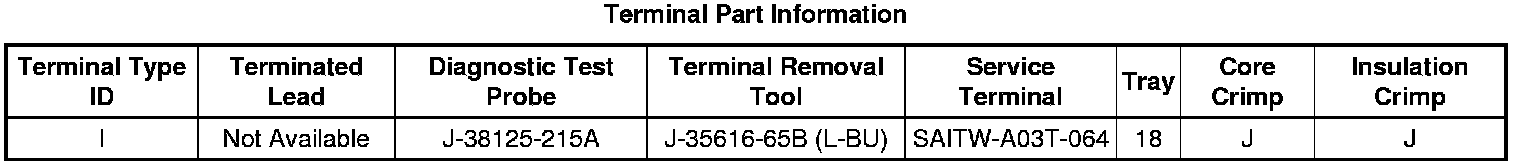

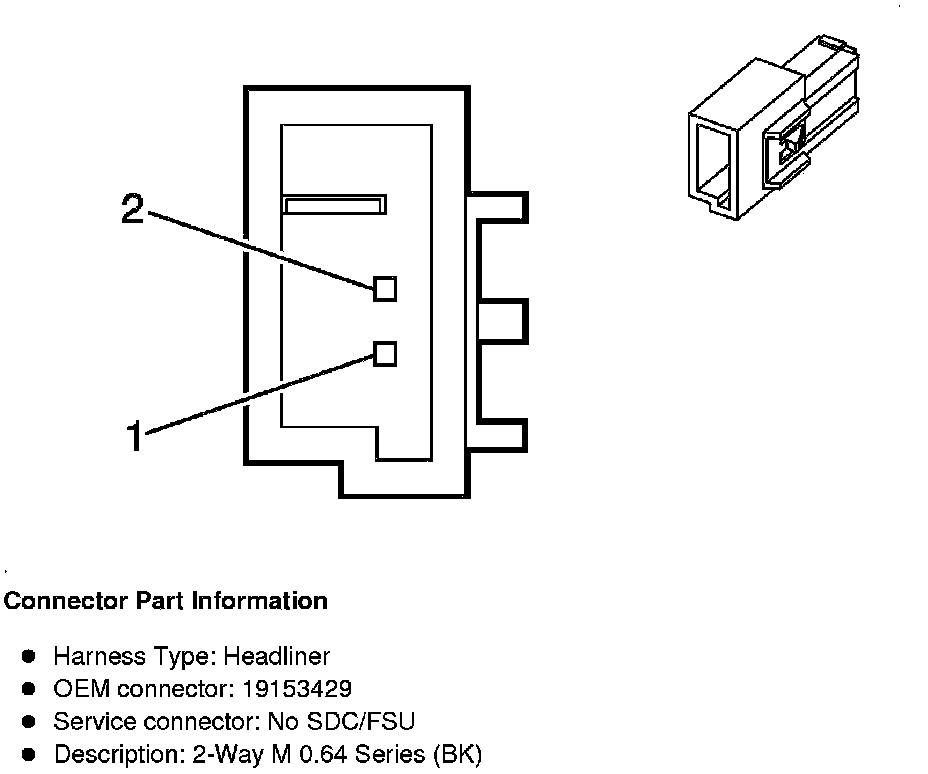

Component Connector End Views

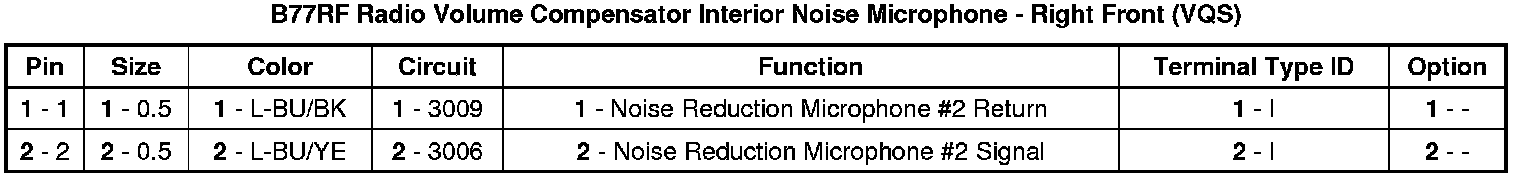

B77RF Radio Volume Compensator Interior Noise Microphone - Right Front (VQS)
