Flood Lamp - Right Rear Door Handle
Flood Lamp - Right Rear Door Handle
Component Connector End Views

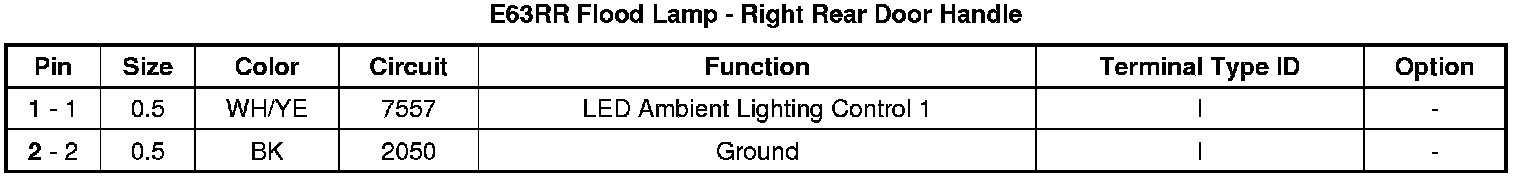

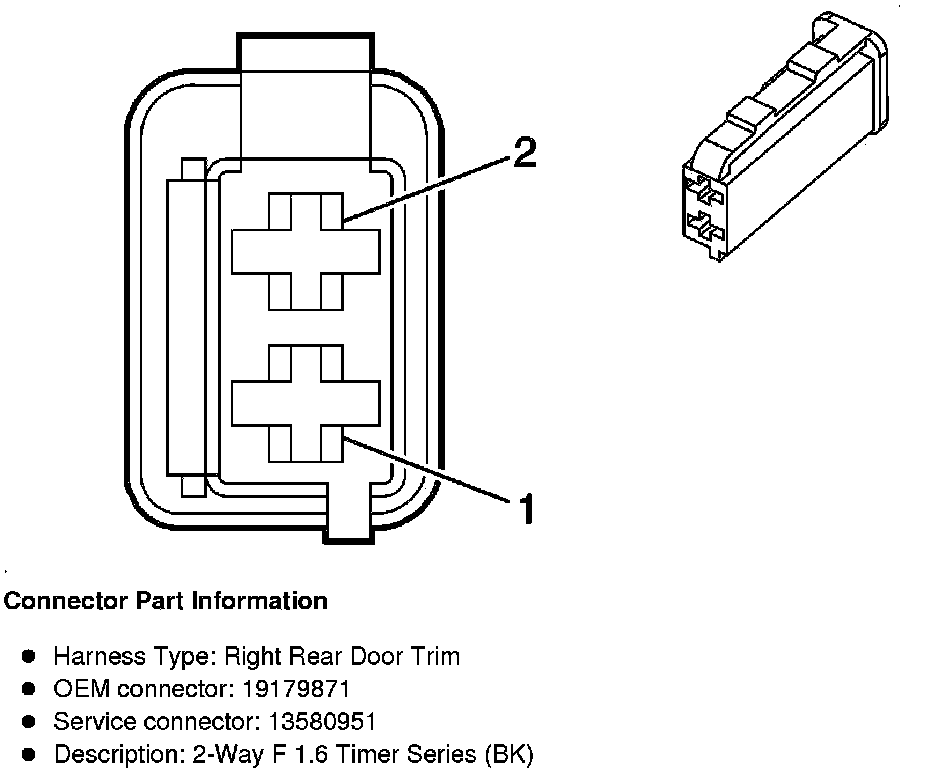

E63RR Flood Lamp - Right Rear Door Handle
