Door Handle Switch - Passenger Exterior
Door Handle Switch - Passenger Exterior
Component Connector End Views

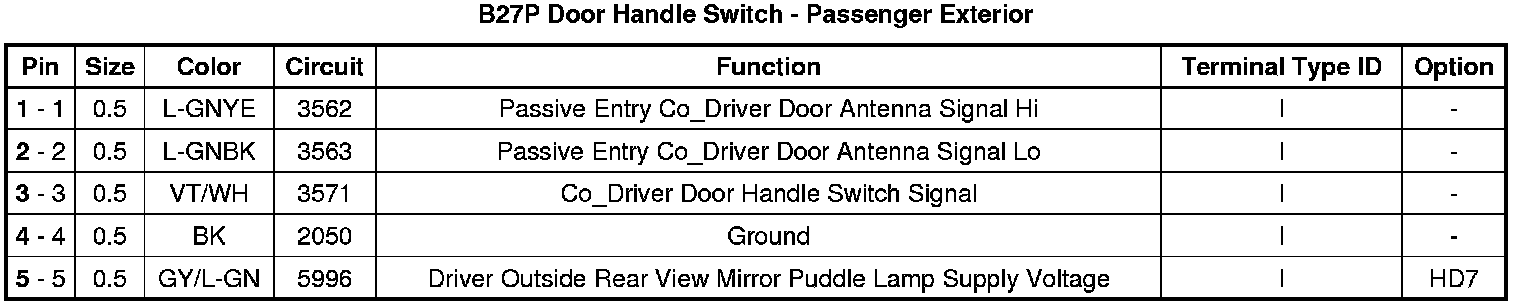

B27P Door Handle Switch - Passenger Exterior
