Cooling Fan Motor - Left
Cooling Fan Motor - Left
Component Connector End Views

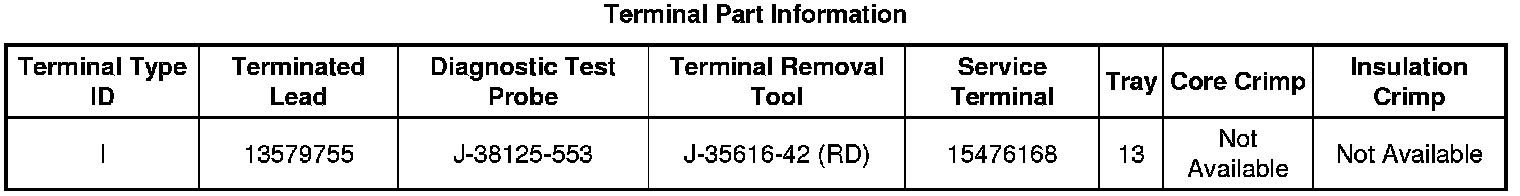

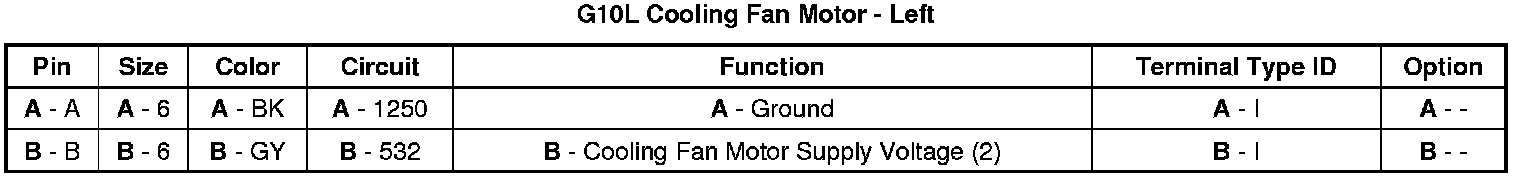

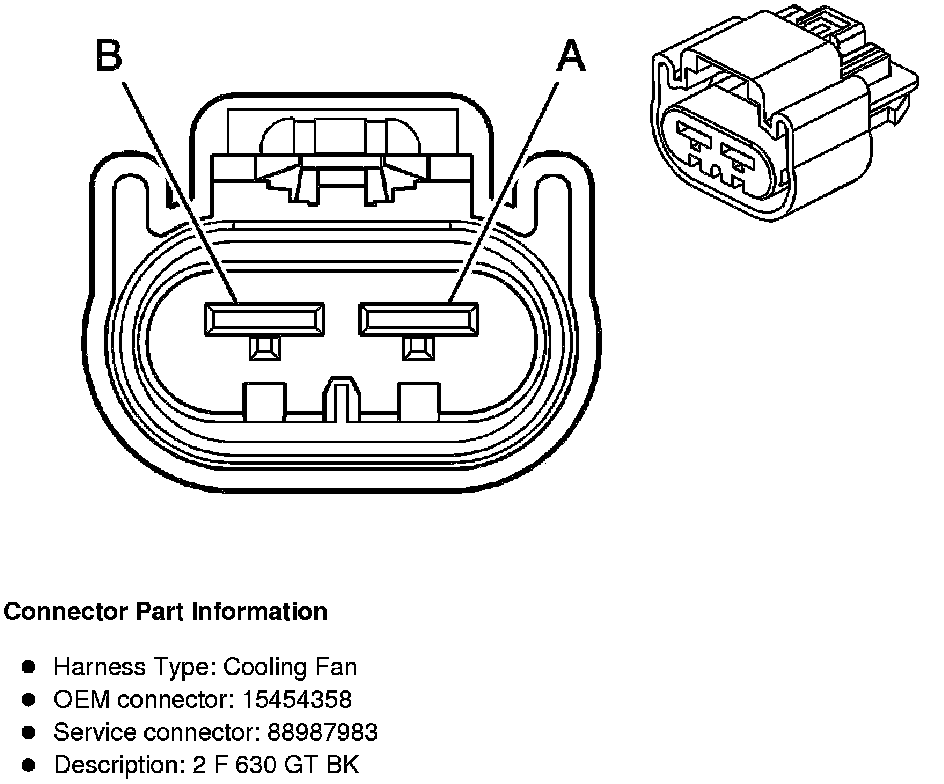

G10L Cooling Fan Motor - Left
