Home
>>
Cadillac
>>
2013
>>
XTS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>
System Diagram
System Diagram

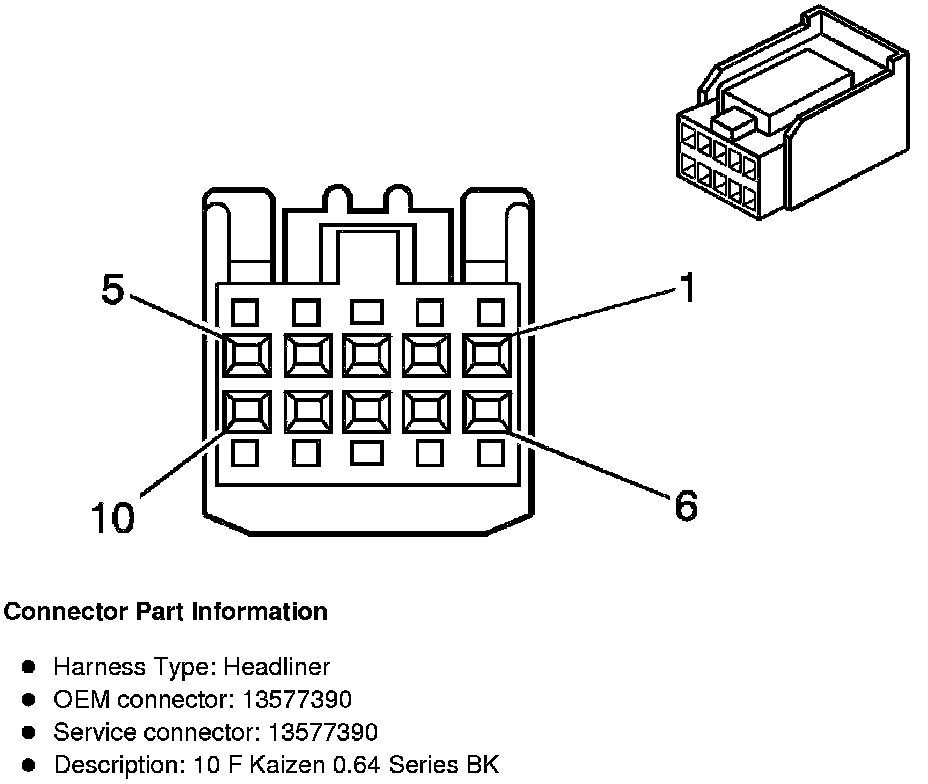

Component Connector End Views

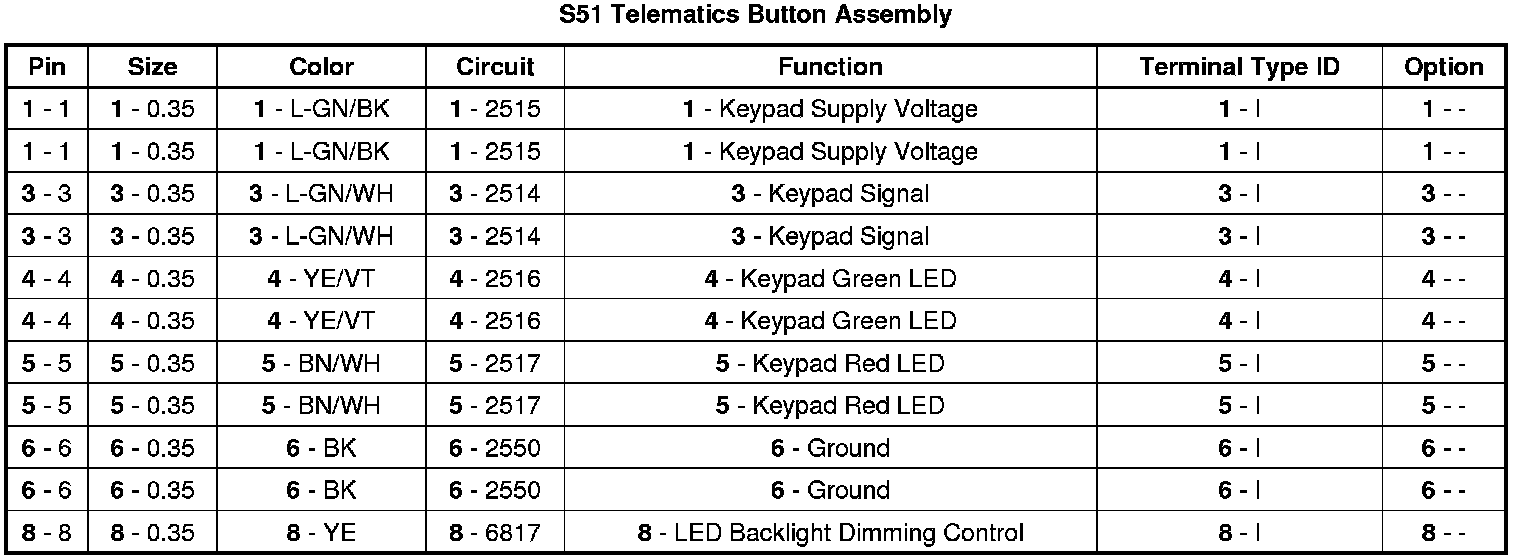

S51 Telematics Button Assembly
