Home
>>
Cadillac
>>
2013
>>
CTS Sedan RWD V8-6.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Differential Temperature Sensor/Switch
>>
Rear Differential Temperature Sensor
Rear Differential Temperature Sensor

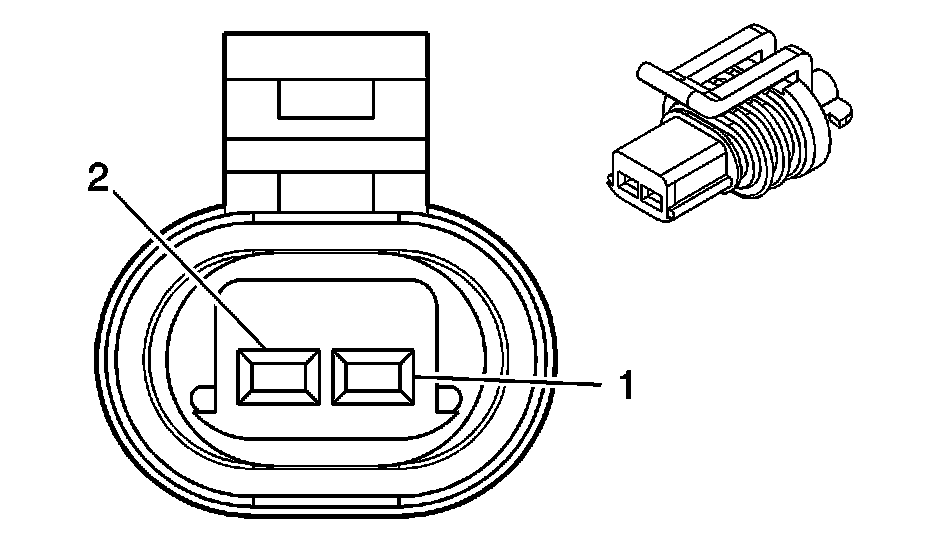

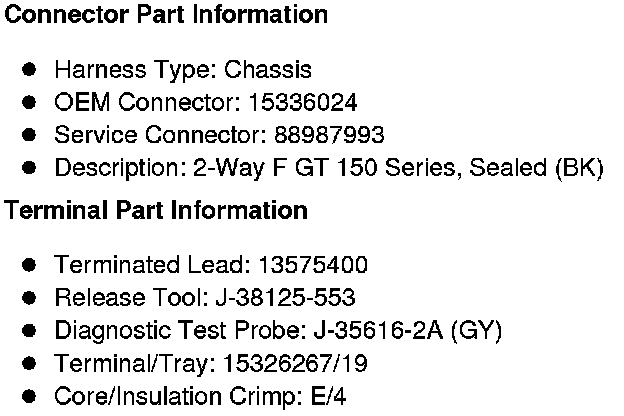

Component Connector End Views
Rear Differential Temperature Sensor (LSA)
