Cadillac
>>
2013
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>

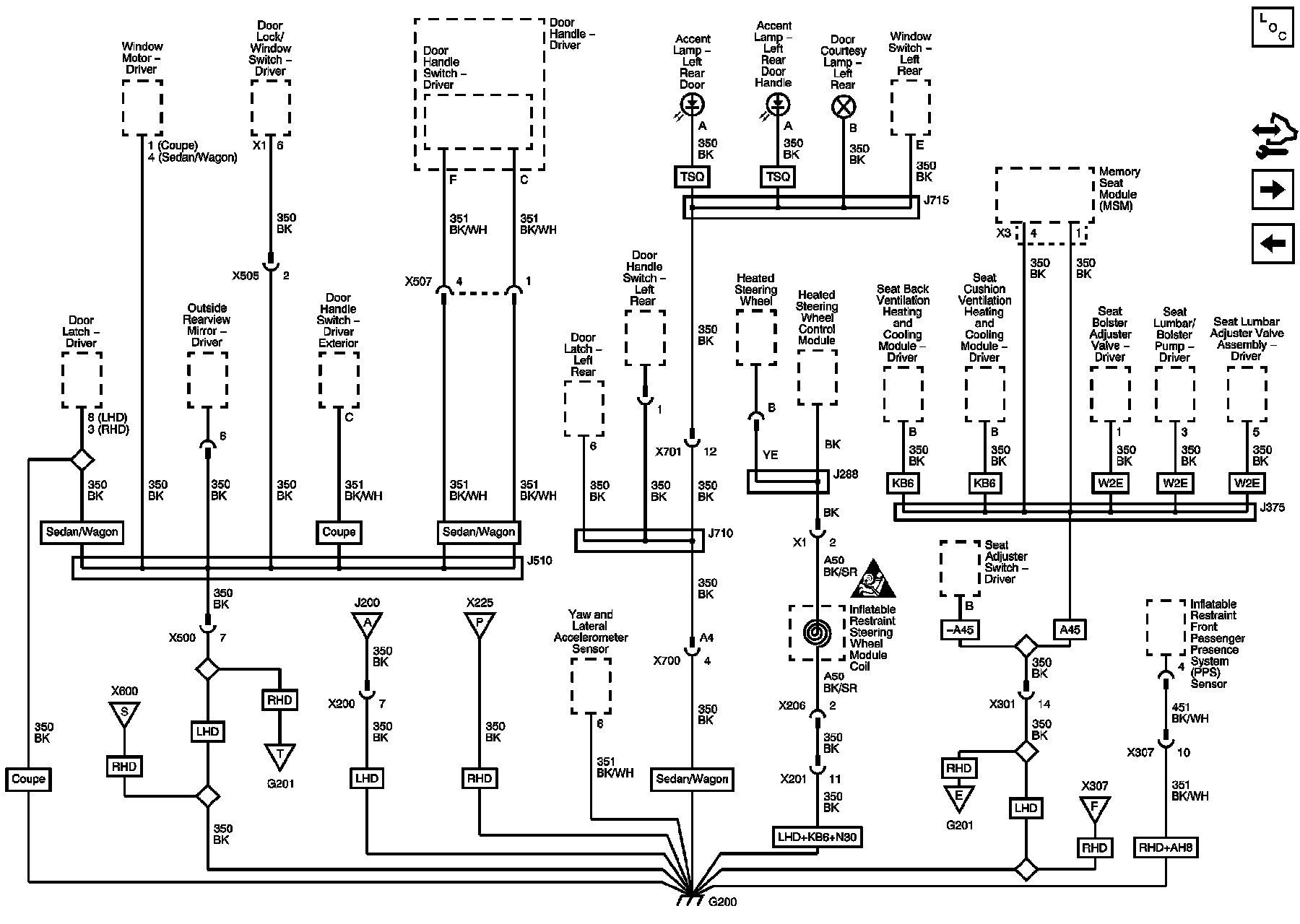

G200 (1 of 2)
G200 (1 of 2)
Ground Distribution Schematics
G200 (1 of 2)
