Windshield Washer Pump
>>
Windshield Washer Fluid Pump
Windshield Washer Fluid Pump

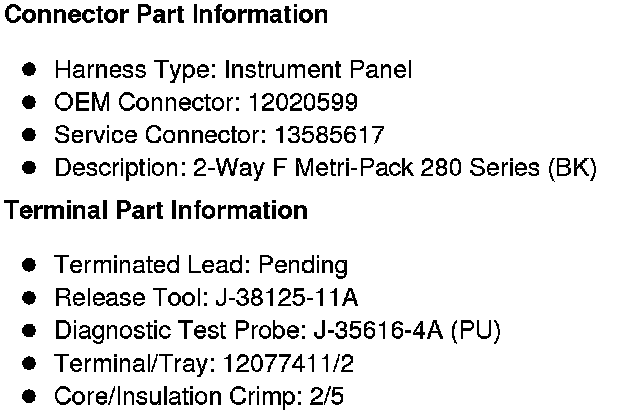

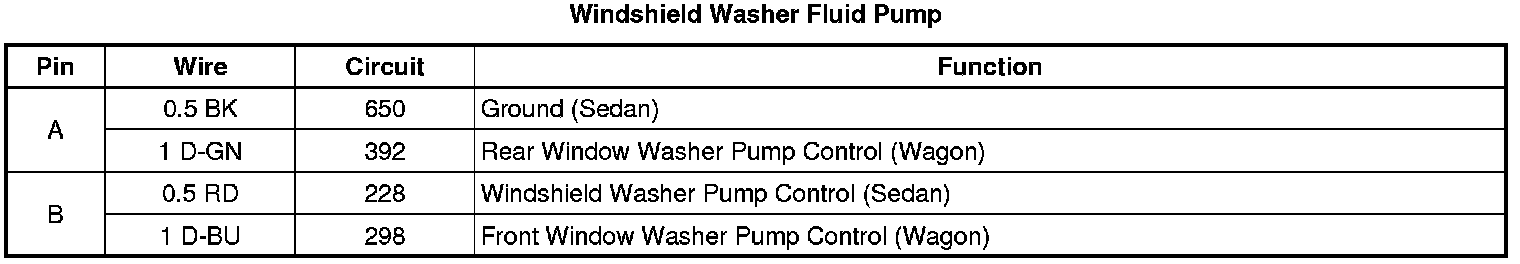

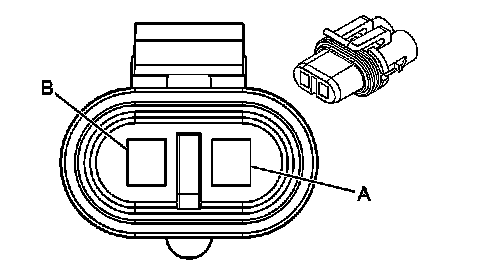

Component Connector End Views
Windshield Washer Fluid Pump
