Home
>>
Cadillac
>>
2013
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Switch
>>
Liftgate Close Switch (Wagon)
Liftgate Close Switch (Wagon)

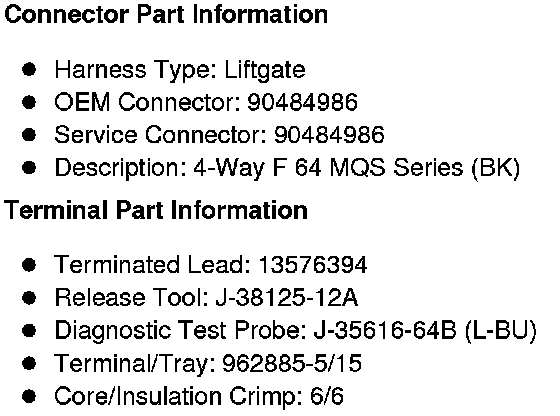

Component Connector End Views

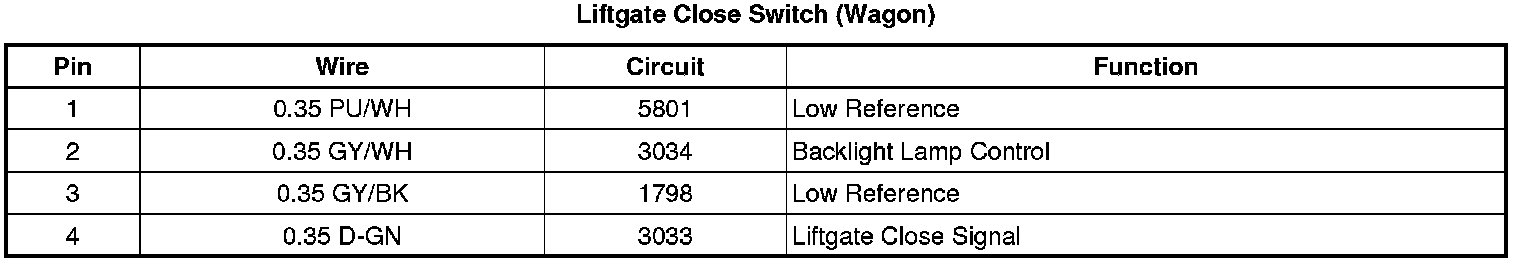

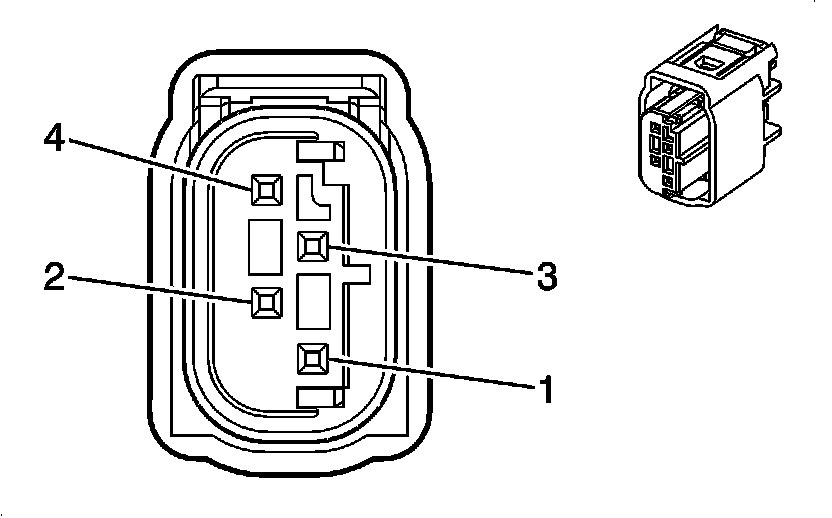

Liftgate Close Switch (Wagon)
