Cadillac
>>
2013
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Mounted Controls Assembly
>>
Steering Wheel Control Switch - Left
Steering Wheel Control Switch - Left

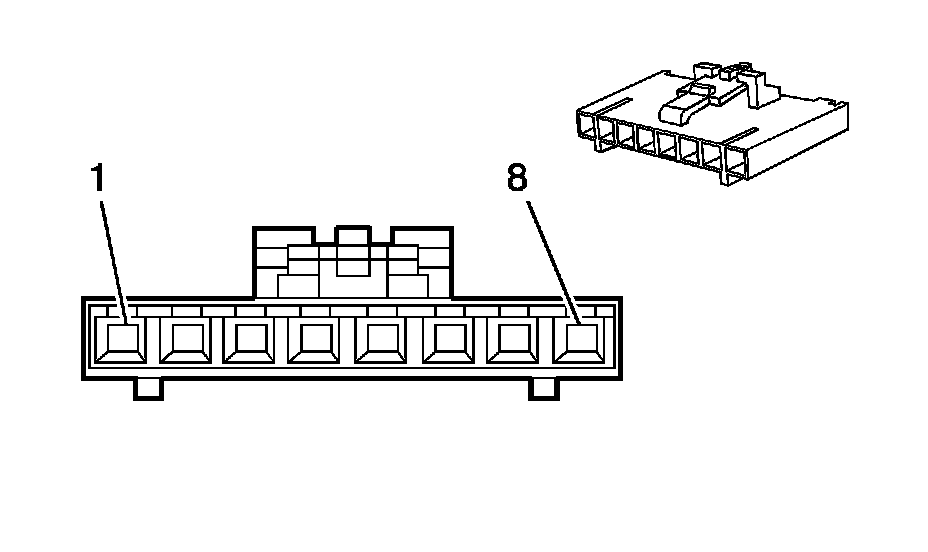

Component Connector End Views

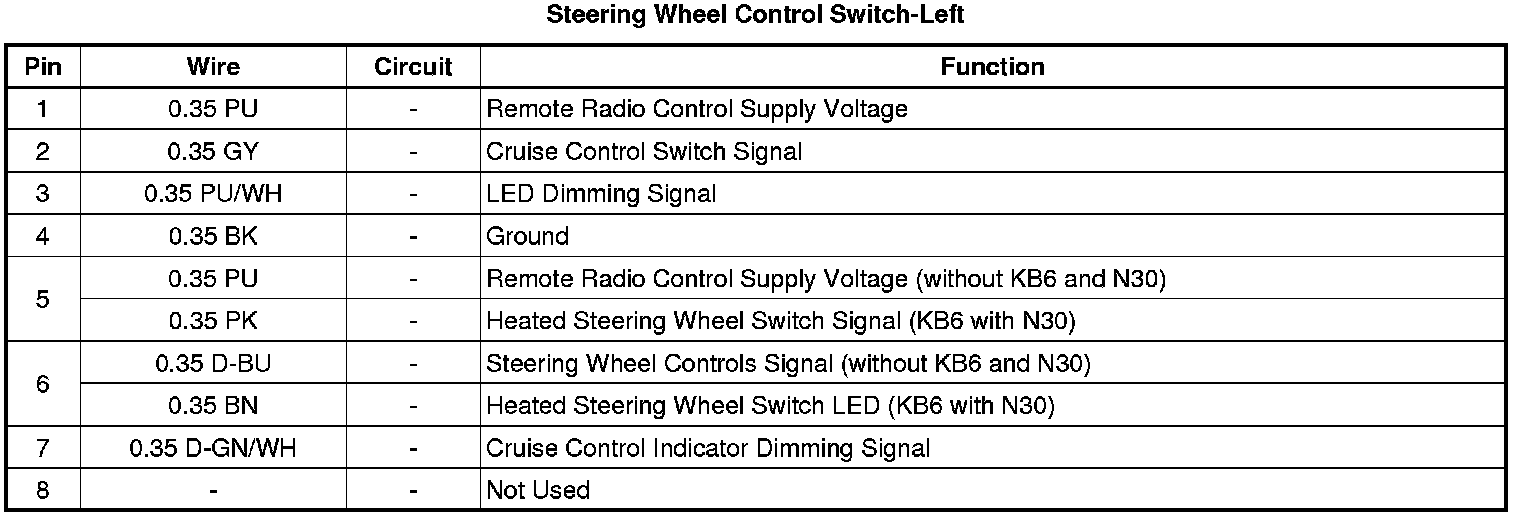

Steering Wheel Control Switch-Left
