Cadillac
>>
2013
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan
>>
System Diagram
System Diagram

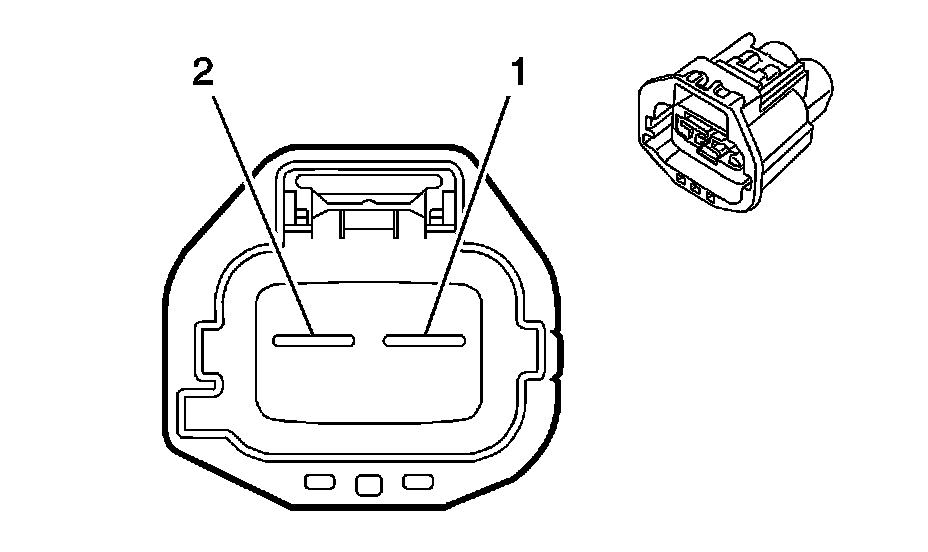

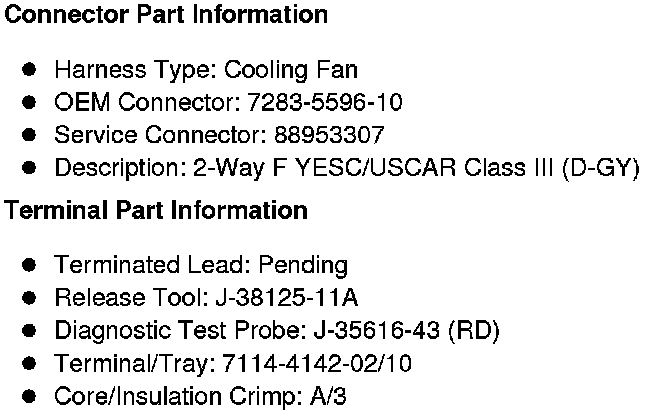

Component Connector End Views
Engine Cooling Fan (LFW or LFX)
