Cadillac
>>
2013
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Speaker-Right Rear Compartment (UQS)
Speaker-Right Rear Compartment (UQS)

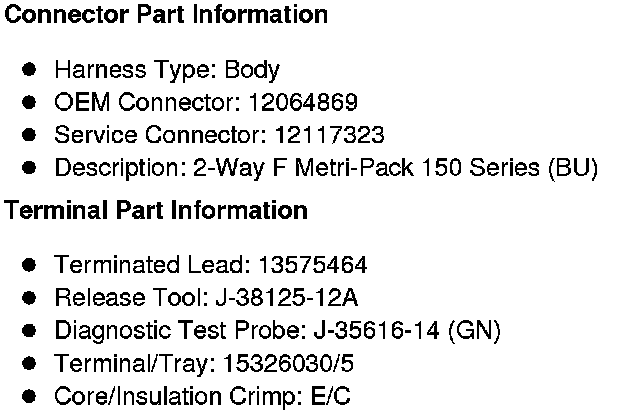

Component Connector End Views

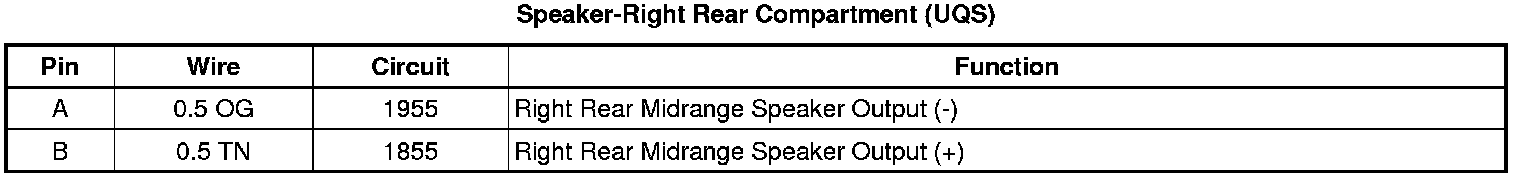

Speaker-Right Rear Compartment (UQS)
