Speaker-Left Rear Compartment (UQS)
Speaker-Left Rear Compartment (UQS)

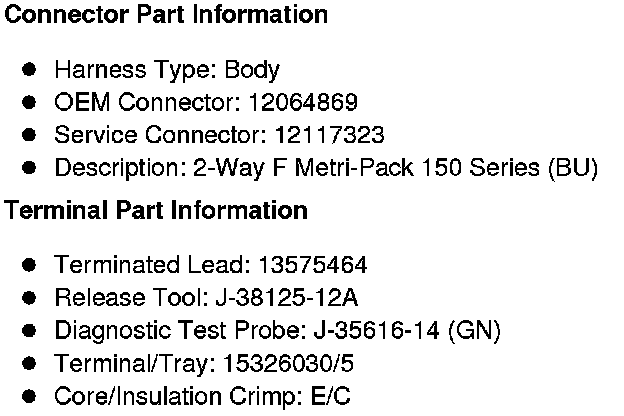

Component Connector End Views

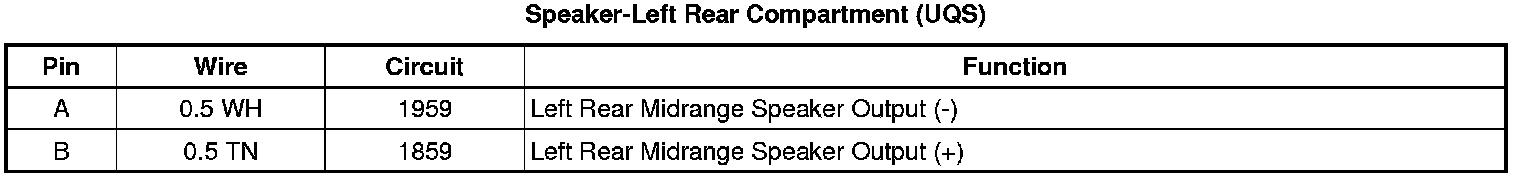

Speaker-Left Rear Compartment (UQS)
