Home
>>
Cadillac
>>
2013
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna
>>
Antenna Control Module
>>
Radio Antenna Module (Coupe or Wagon)
Radio Antenna Module (Coupe or Wagon)

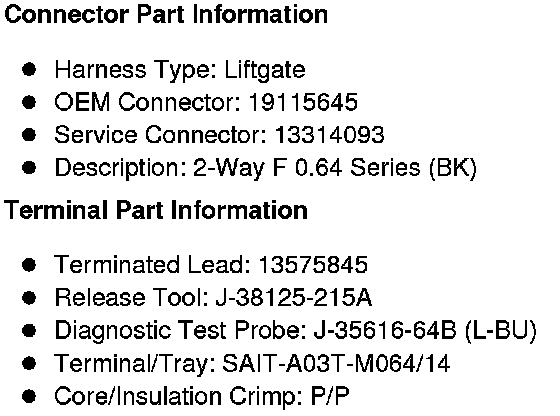

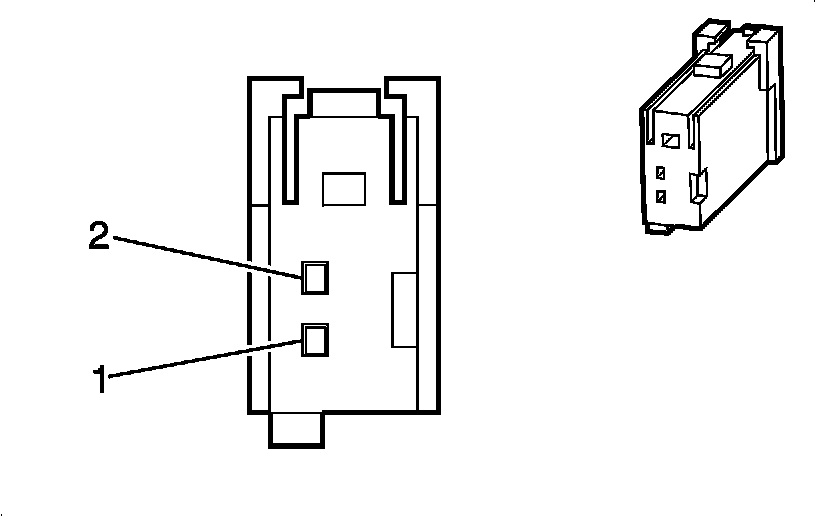

Component Connector End Views

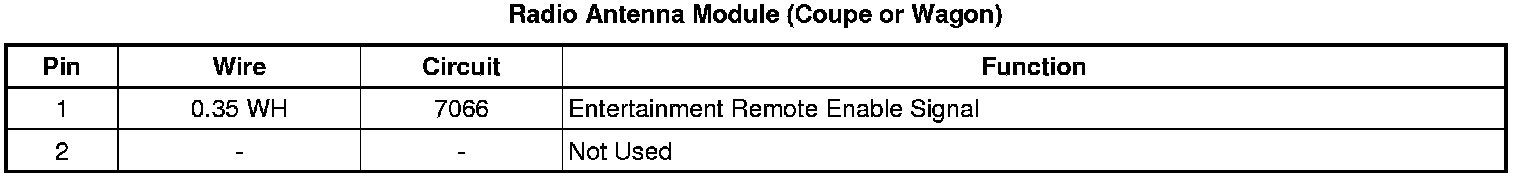

Radio Antenna Module (Coupe or Wagon)
