Front Bumper Fascia Replacement

Front Bumper Fascia Replacement

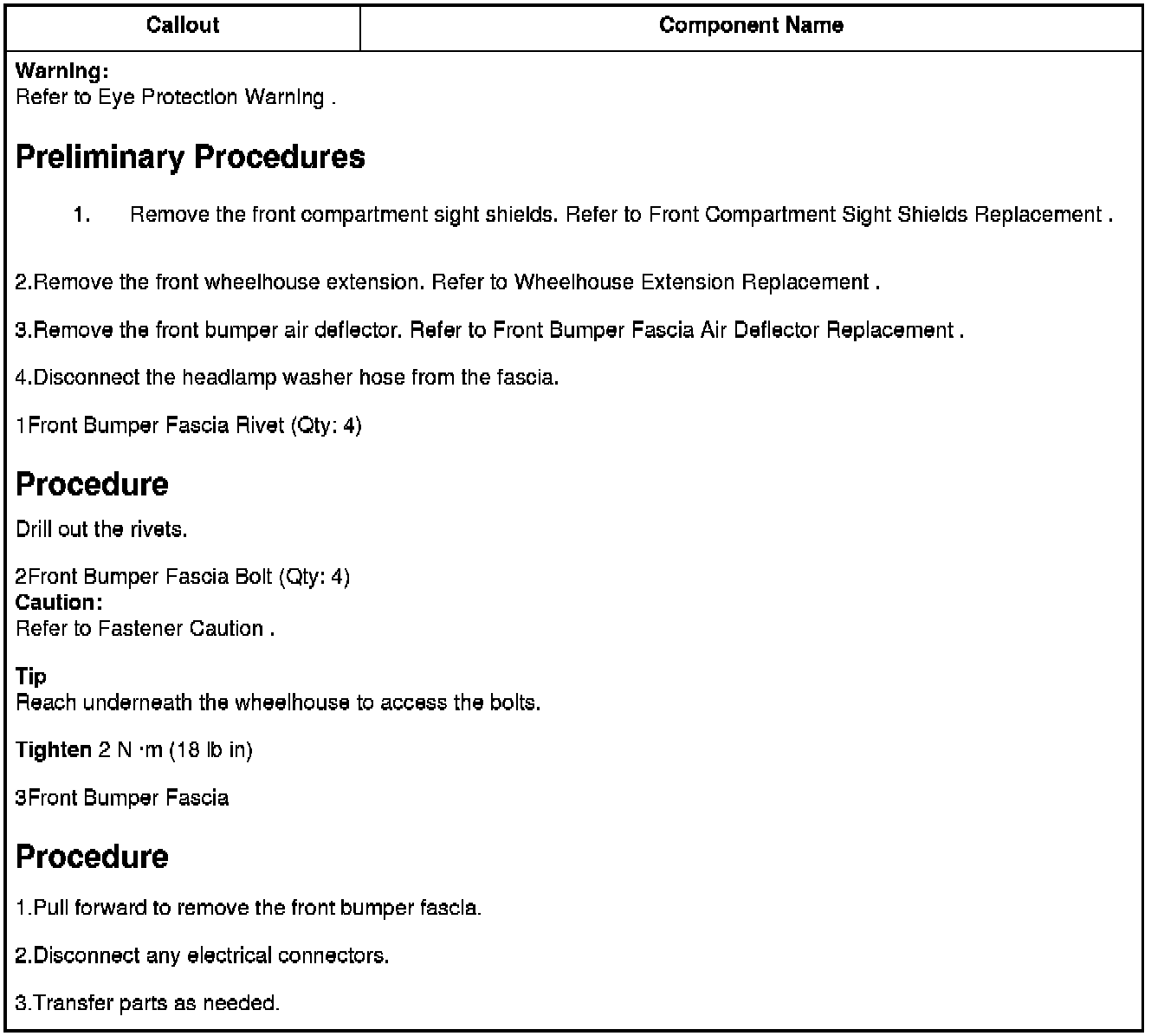

2.Remove the front wheelhouse extension. Refer to Wheelhouse Extension Replacement Wheelhouse Extension Replacement.

3.Remove the front bumper air deflector. Refer to Front Bumper Fascia Air Deflector Replacement.

4.Disconnect the headlamp washer hose from the fascia.

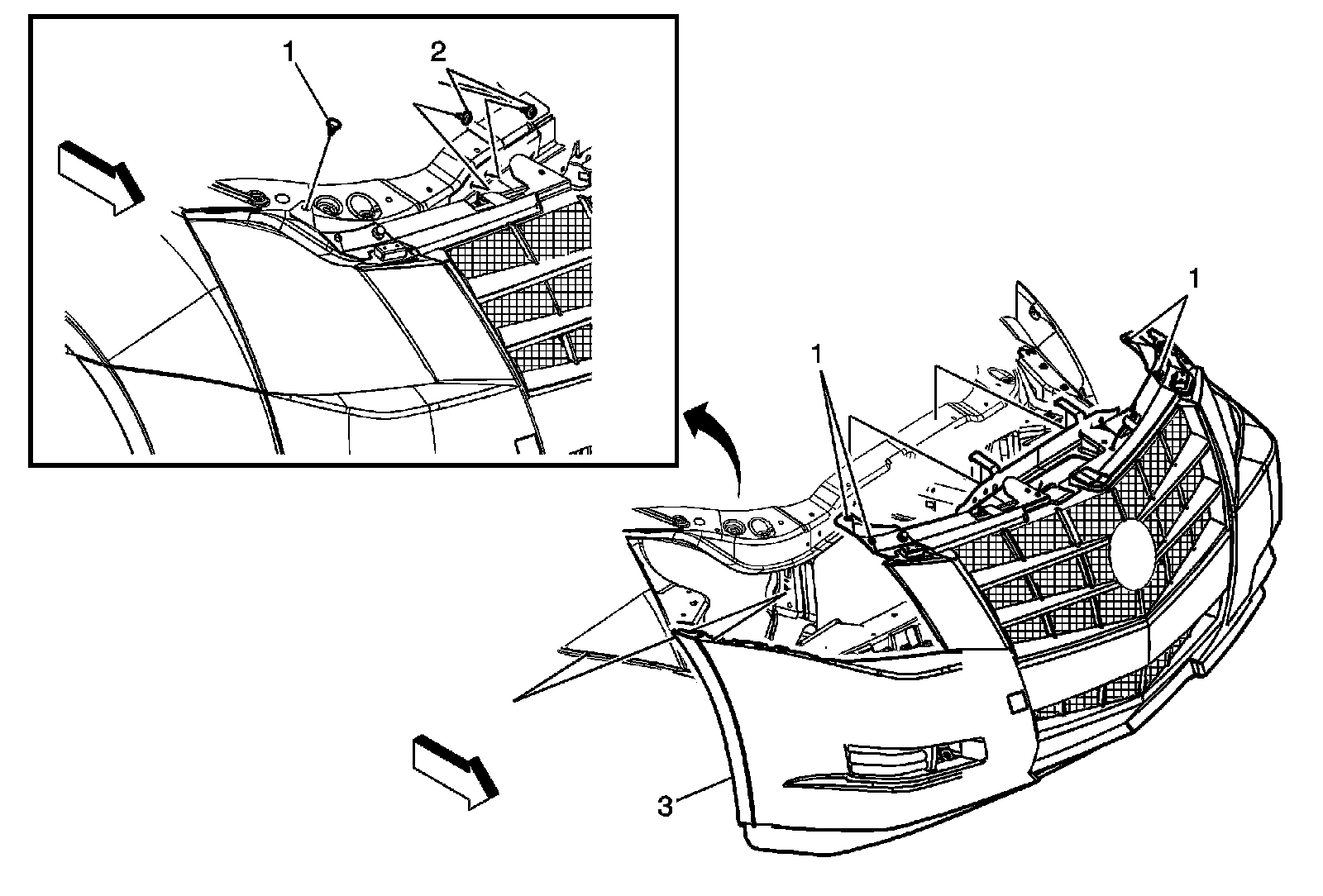

1Front Bumper Fascia Rivet (Qty: 4)

Procedure
Drill out the rivets.

2Front Bumper Fascia Bolt (Qty: 4)
Caution:Refer to Fastener Caution Fastener Caution.

Tip Reach underneath the wheelhouse to access the bolts.
Tighten 2 N �m (18 lb in)

3Front Bumper Fascia

Procedure

1.Pull forward to remove the front bumper fascia.

2.Disconnect any electrical connectors.

3.Transfer parts as needed.
