Home
>>
Cadillac
>>
2013
>>
CTS Sedan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>
G110
G110

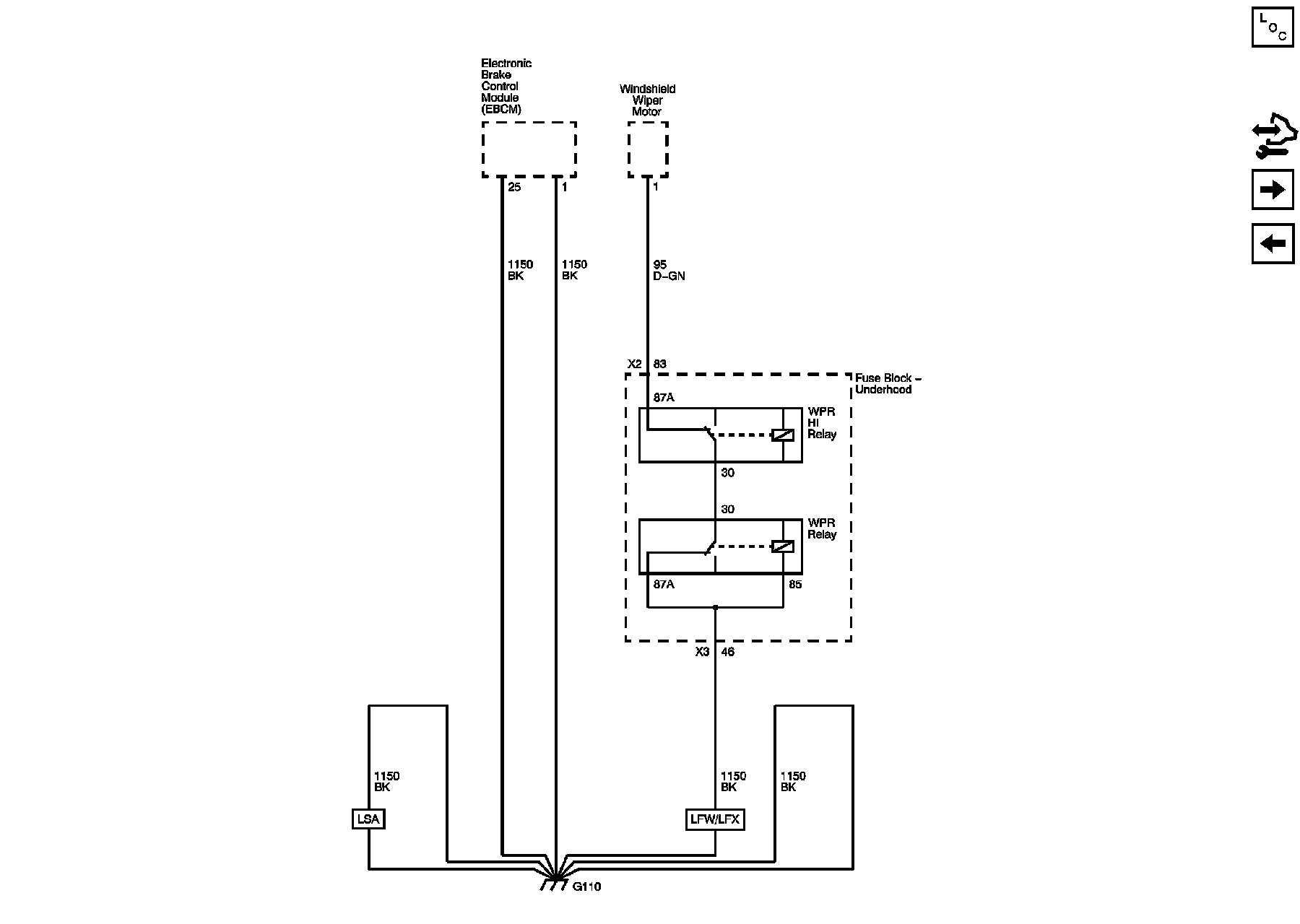

Ground Distribution Schematics
G110
