Cadillac
>>
2013
>>
CTS Sedan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>

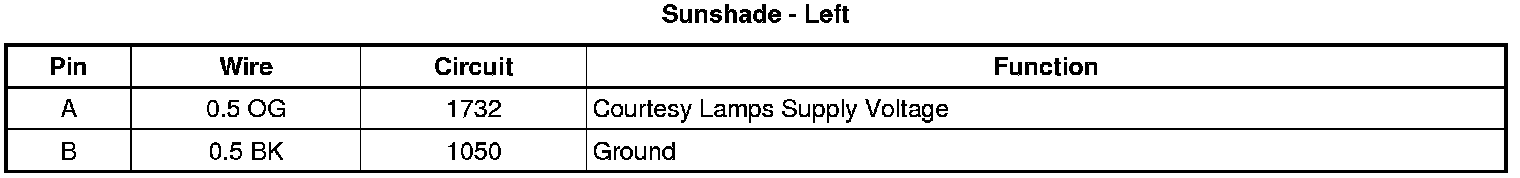

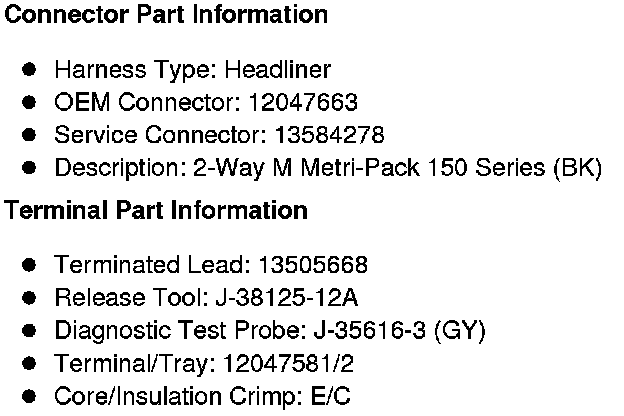

Sunshade - Left
Sunshade - Left
Component Connector End Views
Sunshade - Left
