Boost Solenoid, Supercharger
Boost Solenoid, Supercharger

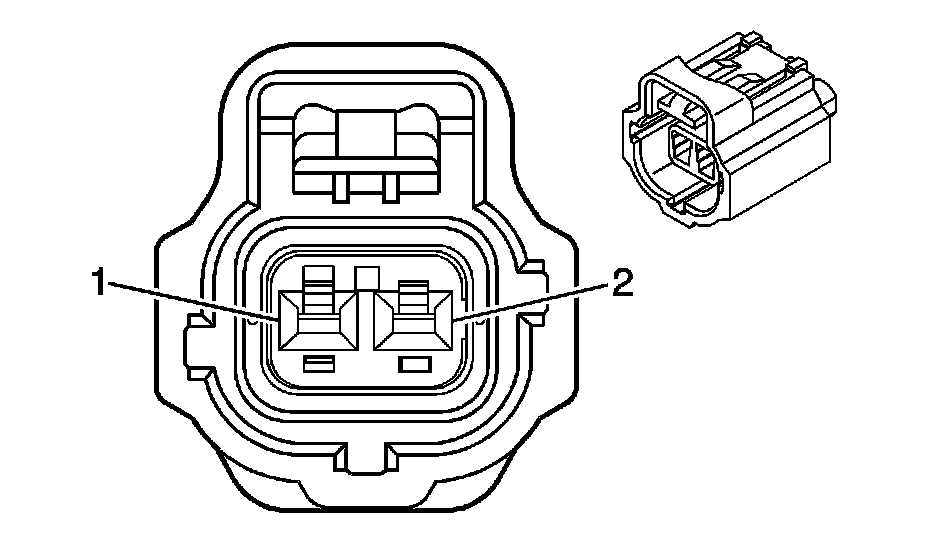

Component Connector End Views

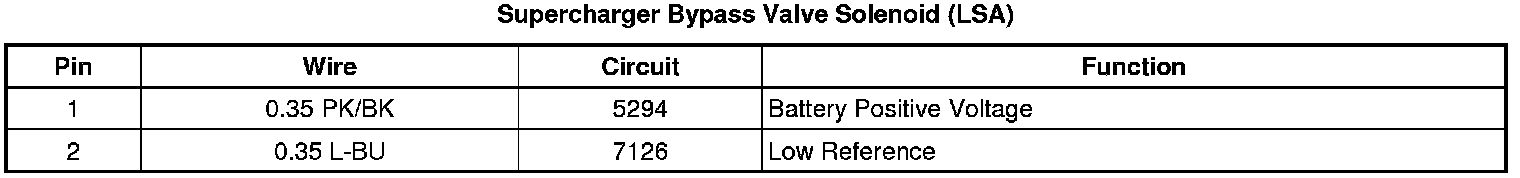

Supercharger
Bypass Valve
Solenoid
(LSA)
