Vacuum Pump, Brakes
Vacuum Pump, Brakes

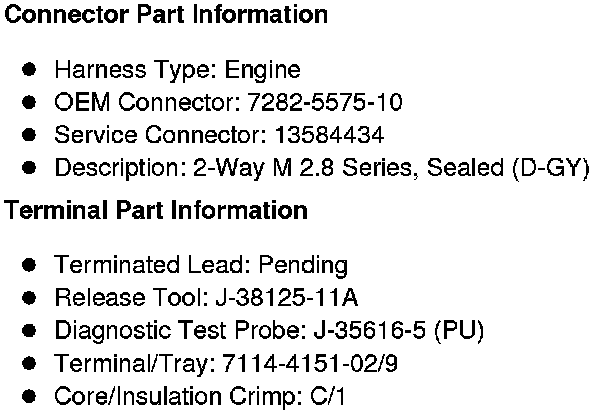

Component Connector End Views

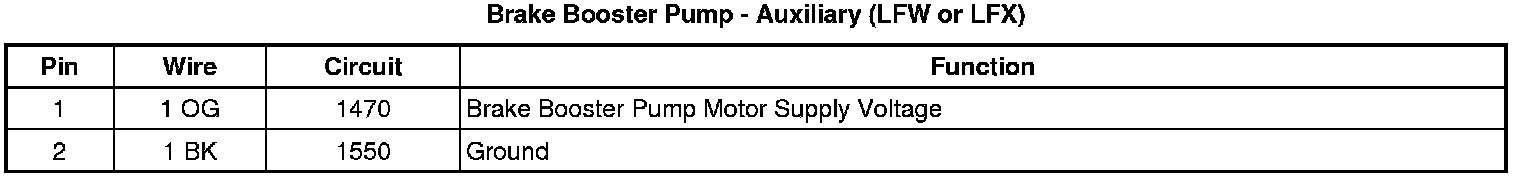

Brake Booster Pump - Auxiliary (LFW or LFX)
