Power Trunk / Liftgate Hazard Sensor
>>
Liftgate Object Sensor - Left (Wagon)
Liftgate Object Sensor - Left (Wagon)

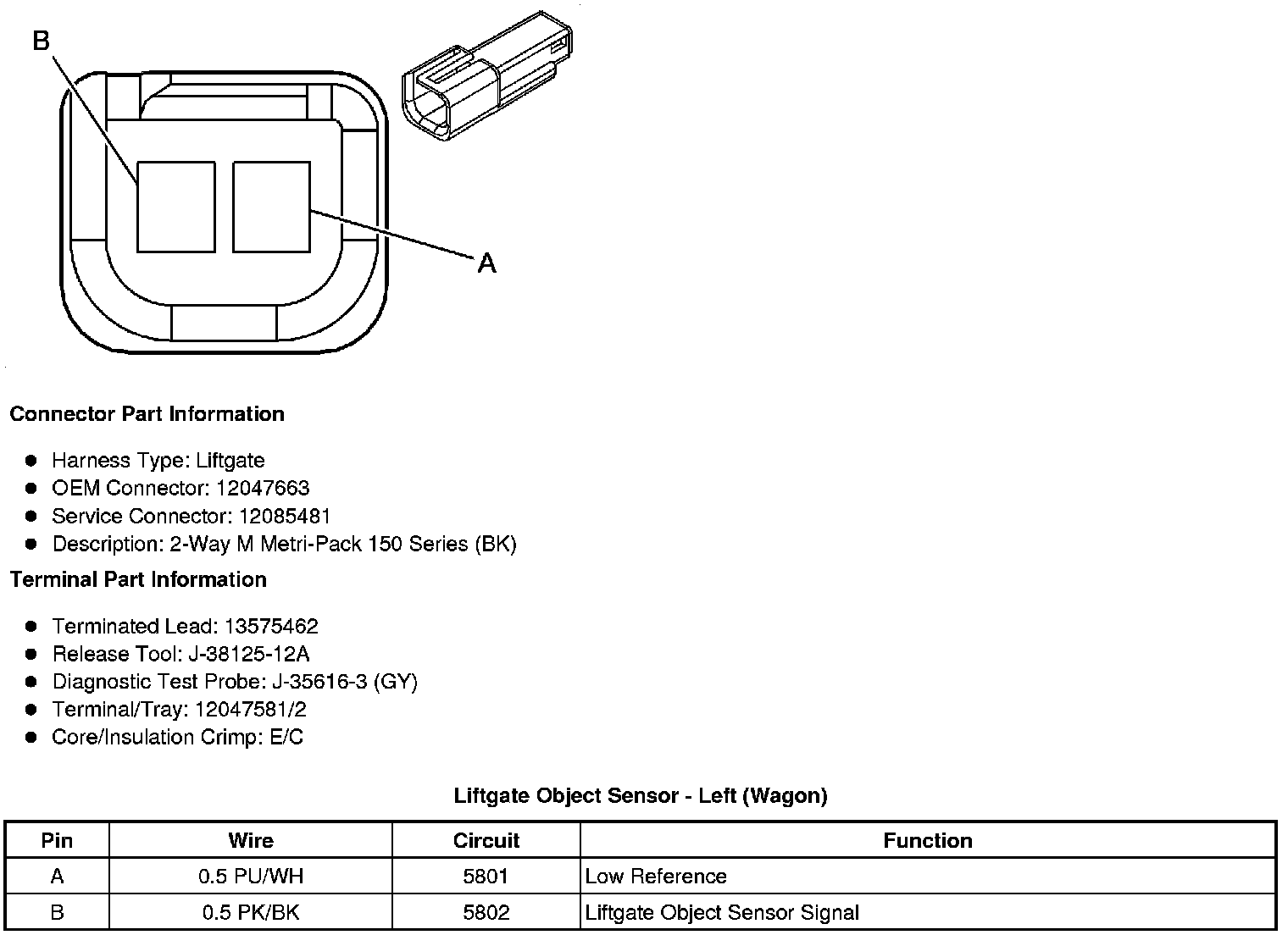

Component Connector End Views
Liftgate Object Sensor - Left (Wagon)
