Cadillac
>>
2012
>>
CTS Sedan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heated Glass Element
>>
Heated Glass Element Relay
Heated Glass Element Relay
Component Connector End Views

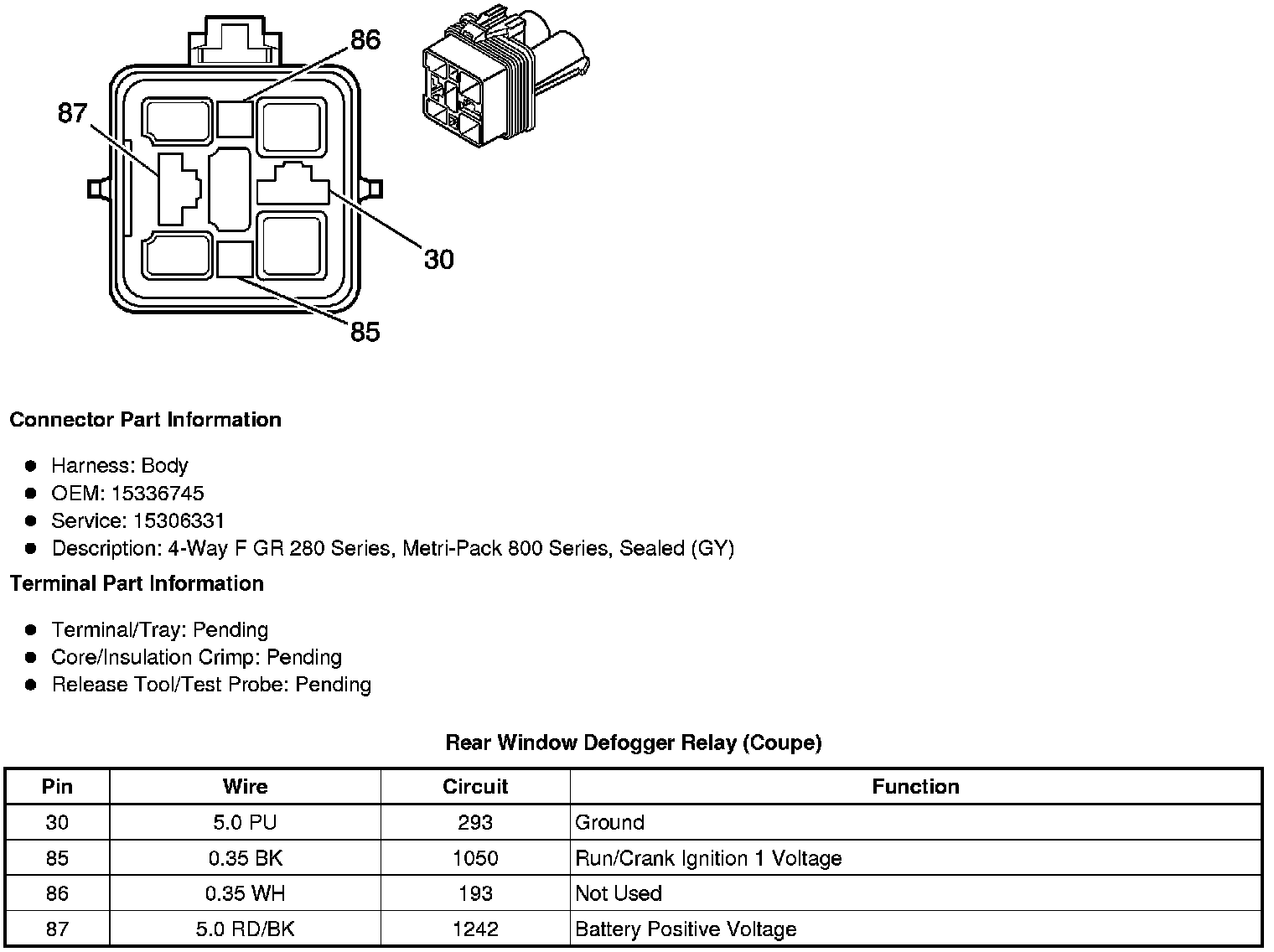

Rear Window Defogger Relay (Coupe)
