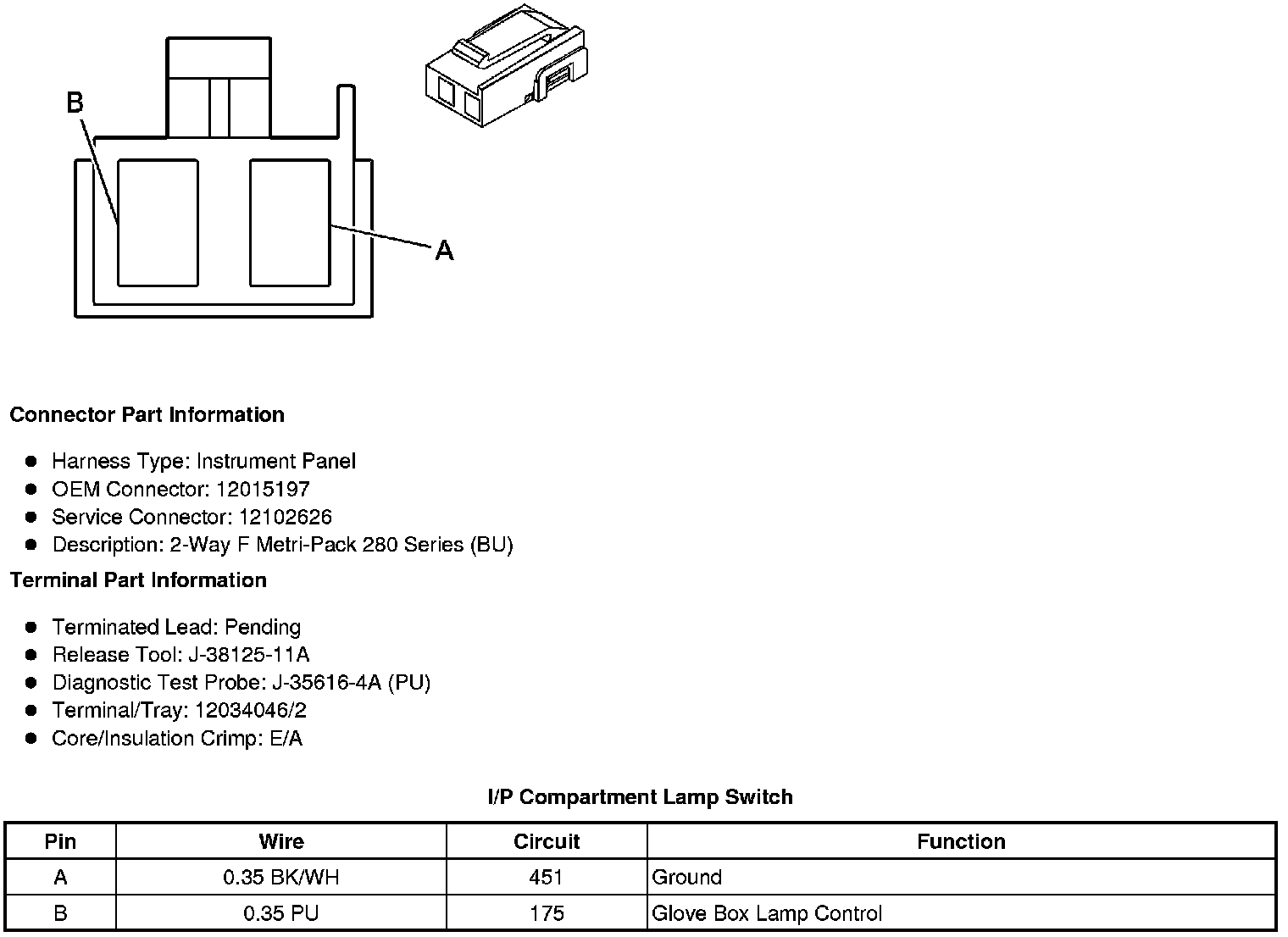

I/P Compartment Lamp Switch
I/P Compartment Lamp Switch
Component Connector End Views
I/P Compartment Lamp Switch
