Power Trunk / Liftgate Hazard Sensor
>>
Liftgate Object Sensor - Right
Liftgate Object Sensor - Right
Component Connector End Views

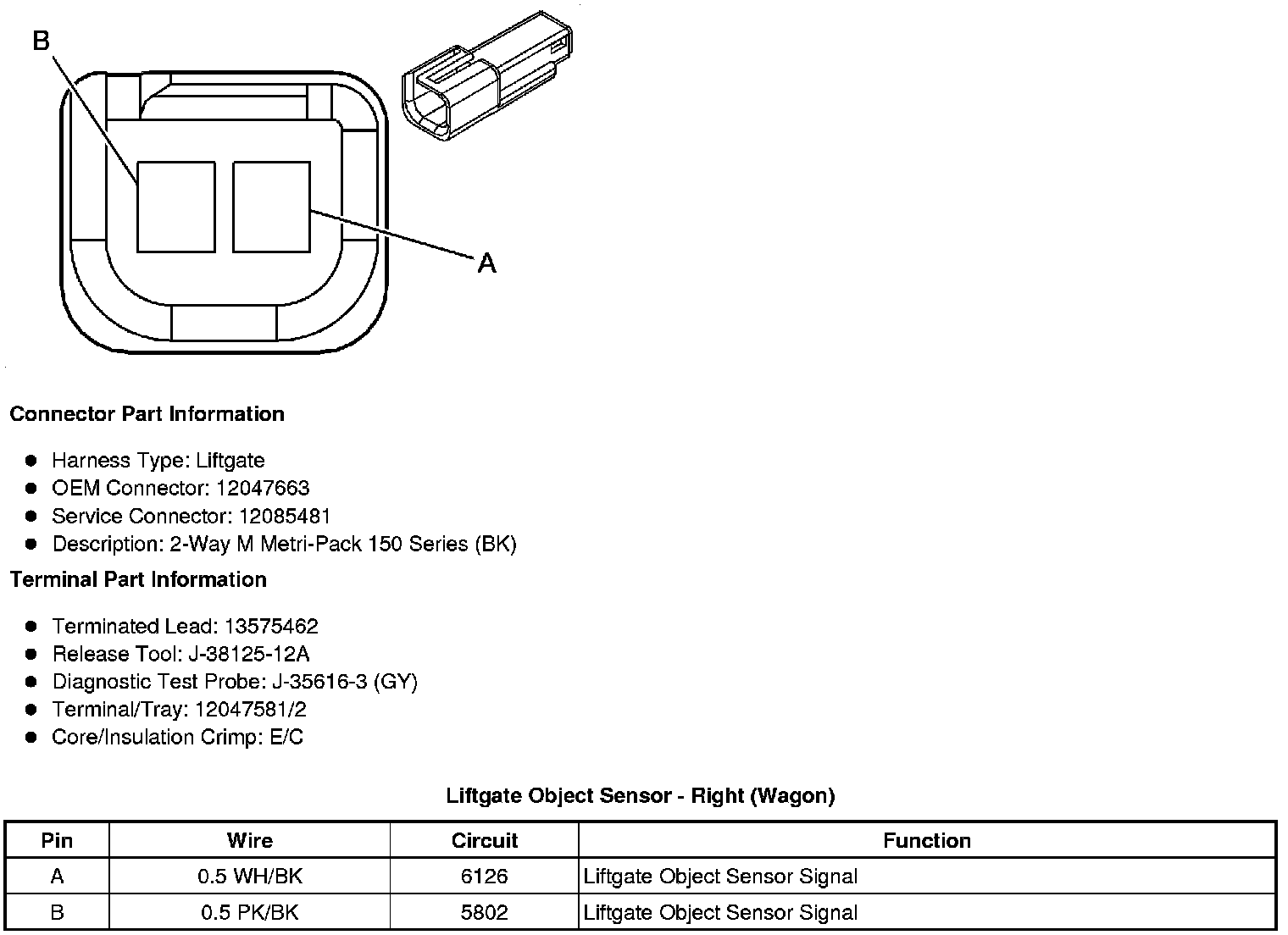

Liftgate Object Sensor - Right (Wagon)
