Power Trunk / Liftgate Hazard Sensor
>>
Liftgate Object Sensor - Left
Liftgate Object Sensor - Left
Component Connector End Views

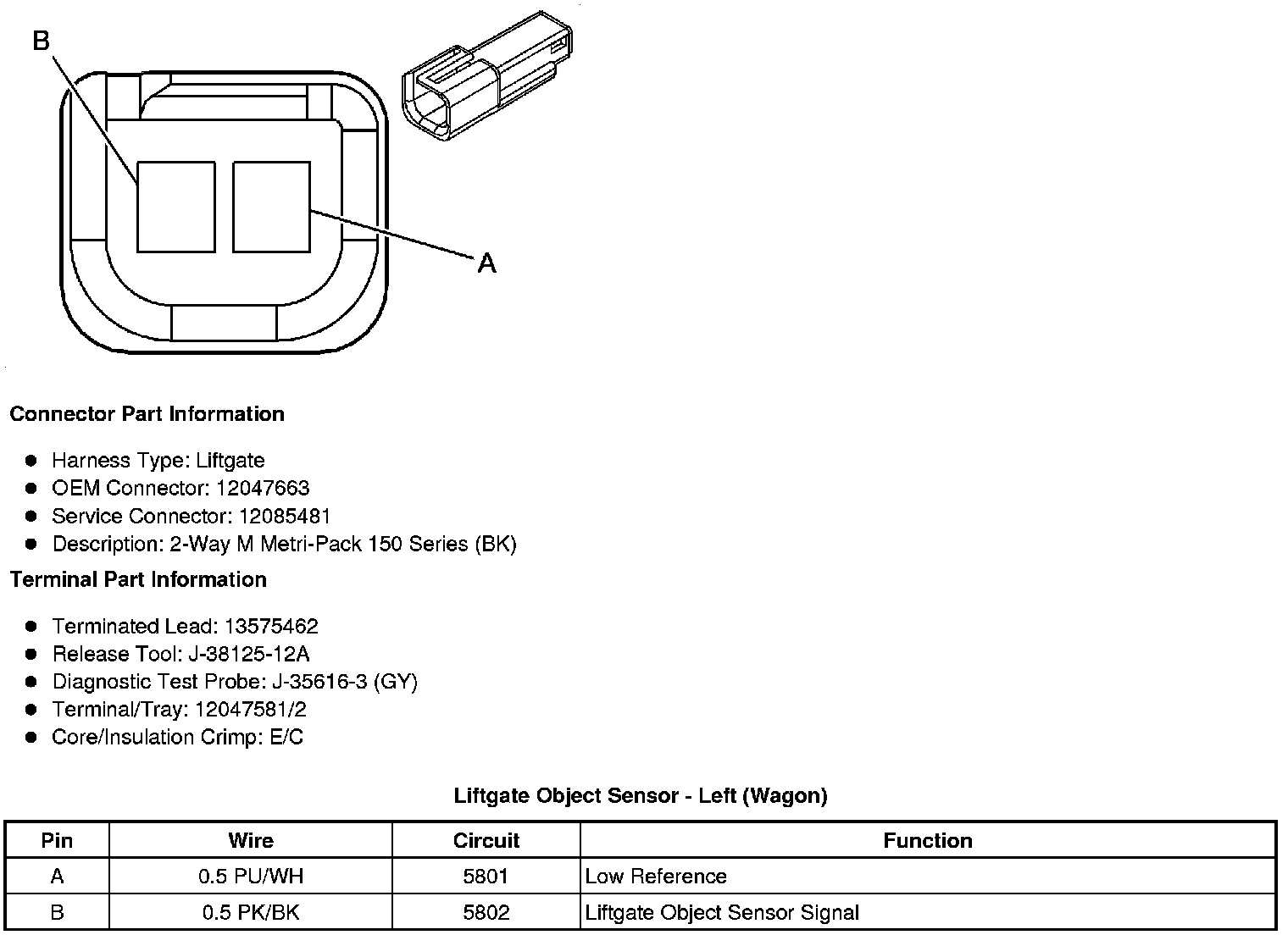

Liftgate Object Sensor - Left (Wagon)
