Fuel Level Sensor Assembly - X3

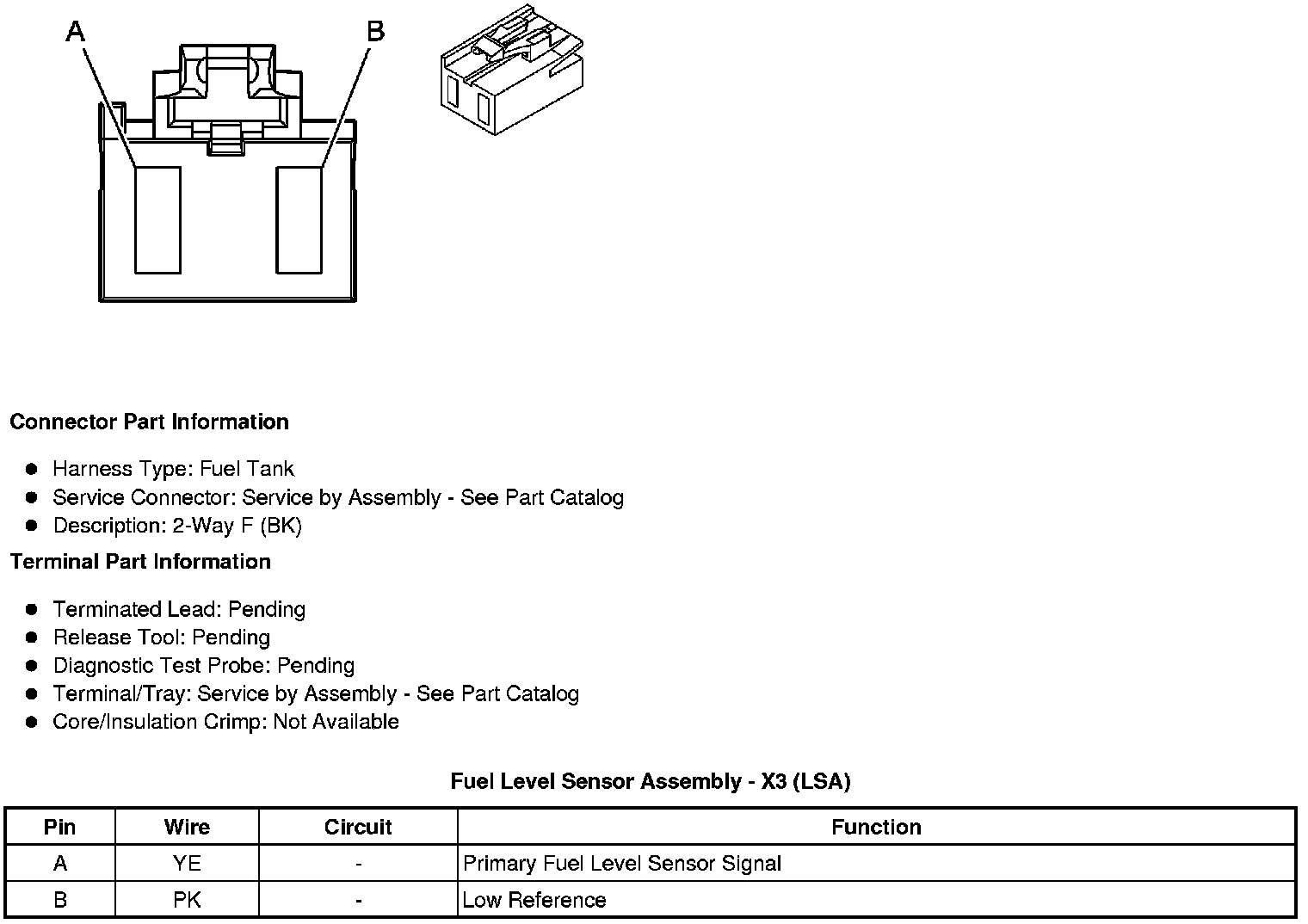

Component Connector End Views

Fuel Level Sensor Assembly - X3 (LSA)
