Engine Mount - Left Side

Engine Mount Replacement - Left Side

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the left engine mount bracket. Refer to Engine Mount Bracket Replacement - Left Side (Engine Mount Bracket Replacement - Left Side).

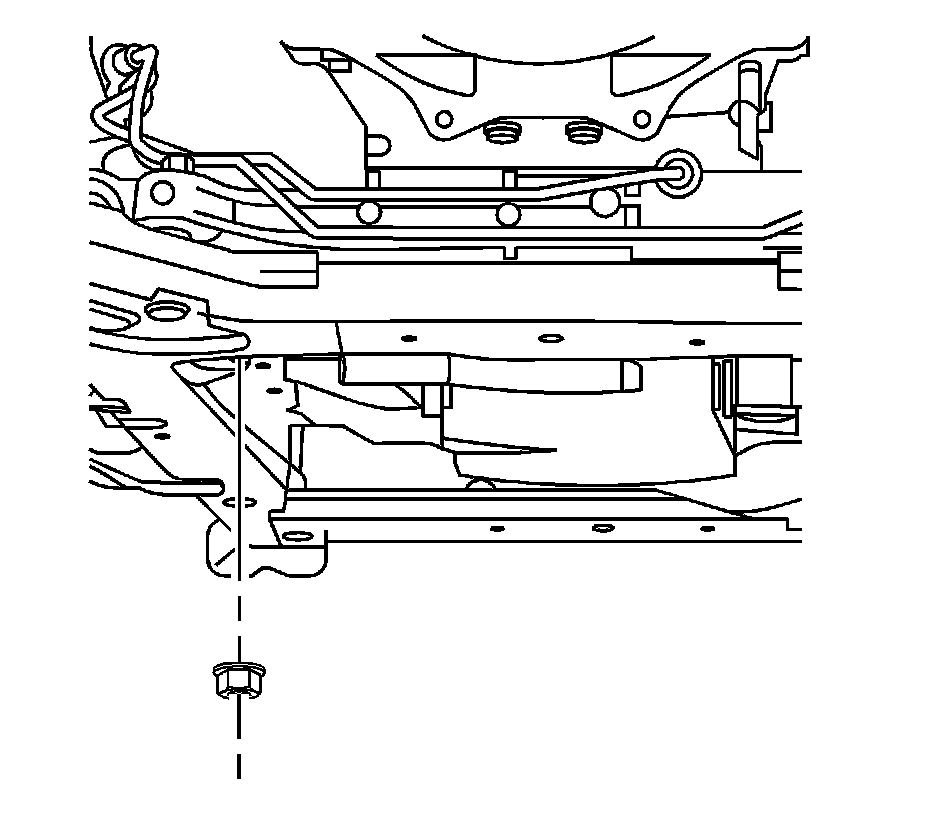

3. Remove the lower engine mount retaining nut.
4. Remove the engine mount from the vehicle.

Installation Procedure




1. Install the engine mount to the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the engine mount lower retaining nuts and tighten to 80 Nm (59 lb ft).
3. Install the left engine mount bracket. Refer to Engine Mount Bracket Replacement - Left Side (Engine Mount Bracket Replacement - Left Side).
4. Lower the vehicle.
