Home
>>
Cadillac
>>
2010
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
>>
System Diagram
System Diagram

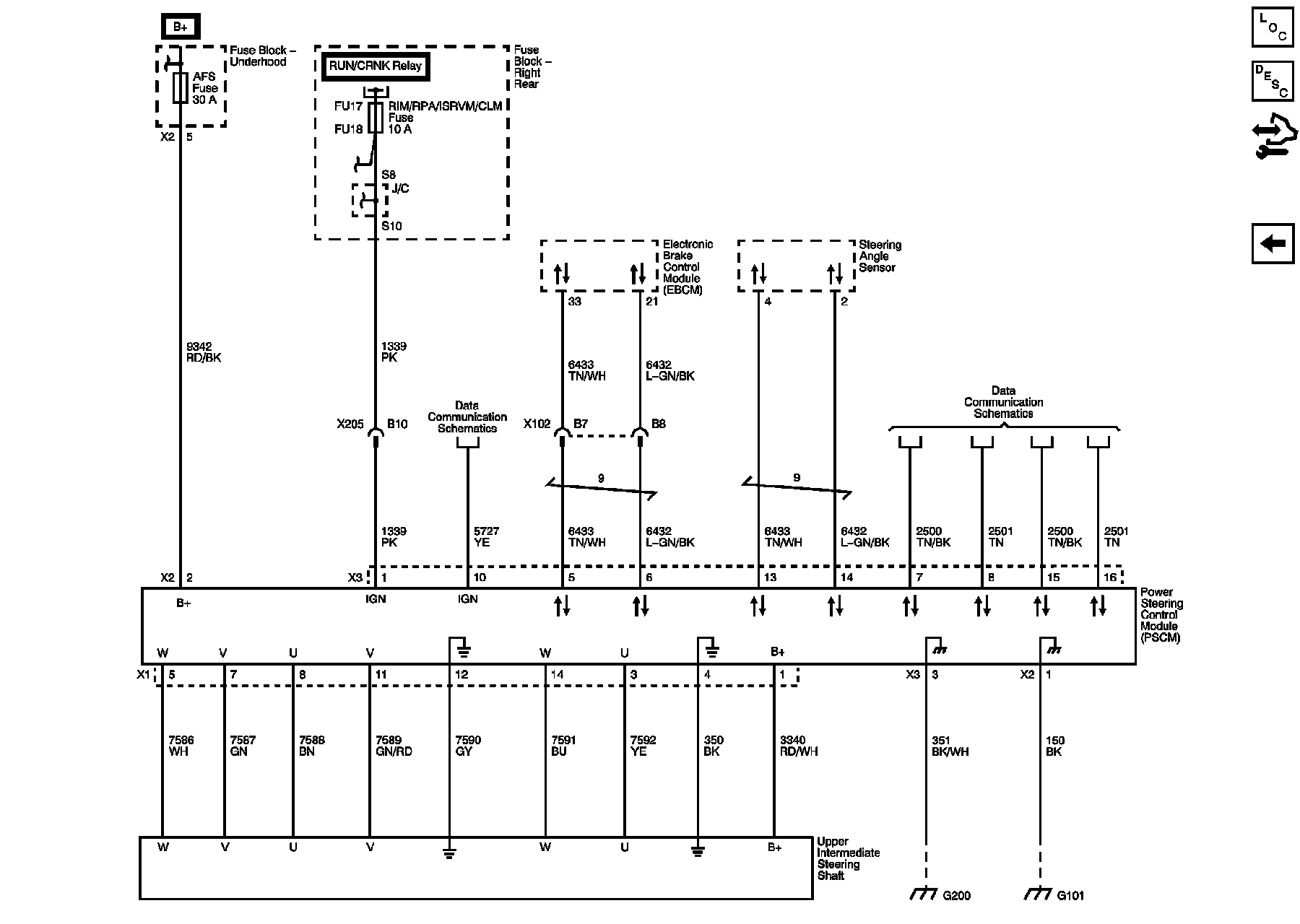

Power Steering
Schematics

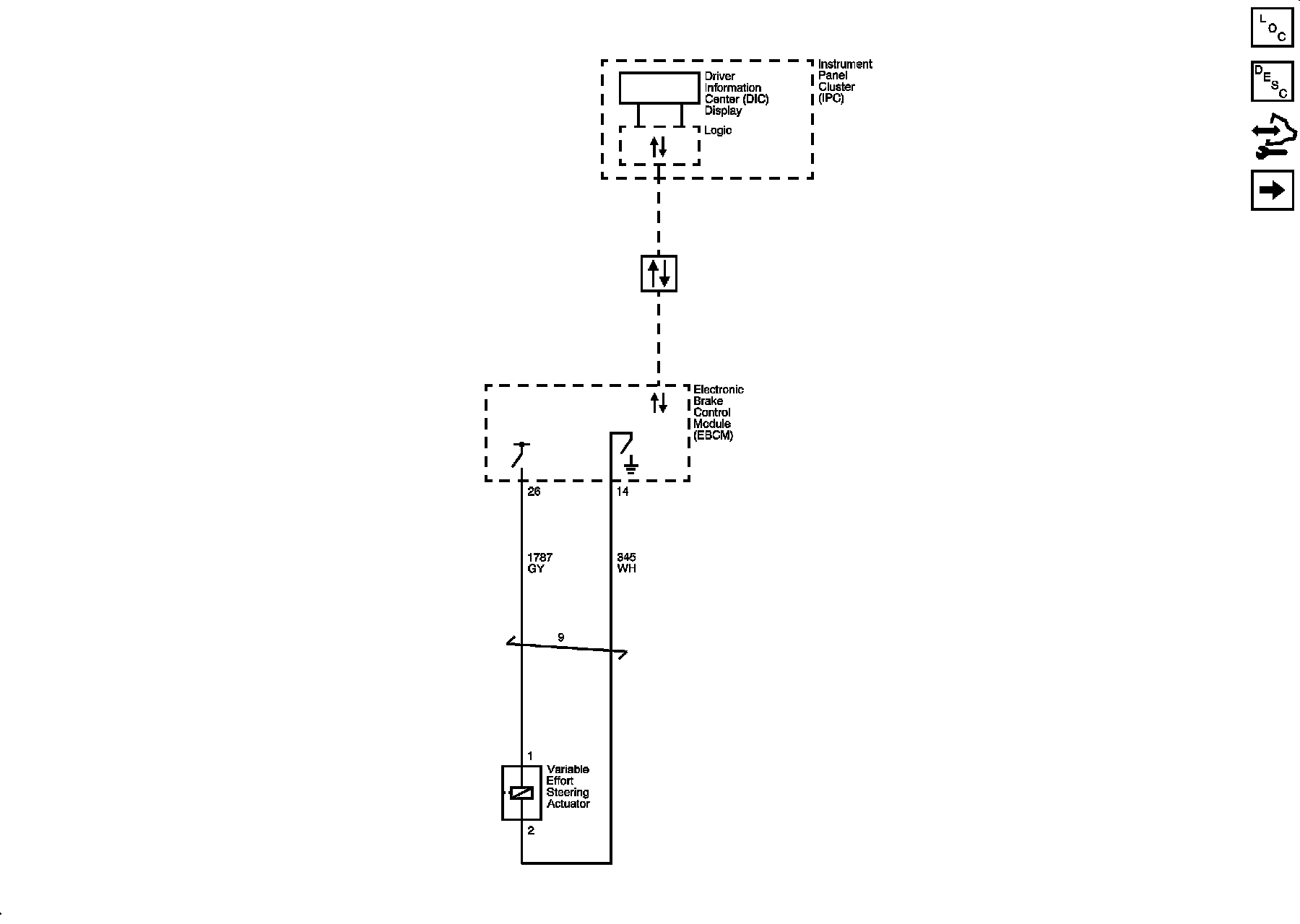

Variable Effort
Active Front
Steering
Module and Actuator (JL7)
