Front Bumper Fascia Replacement

Front Bumper Fascia Replacement

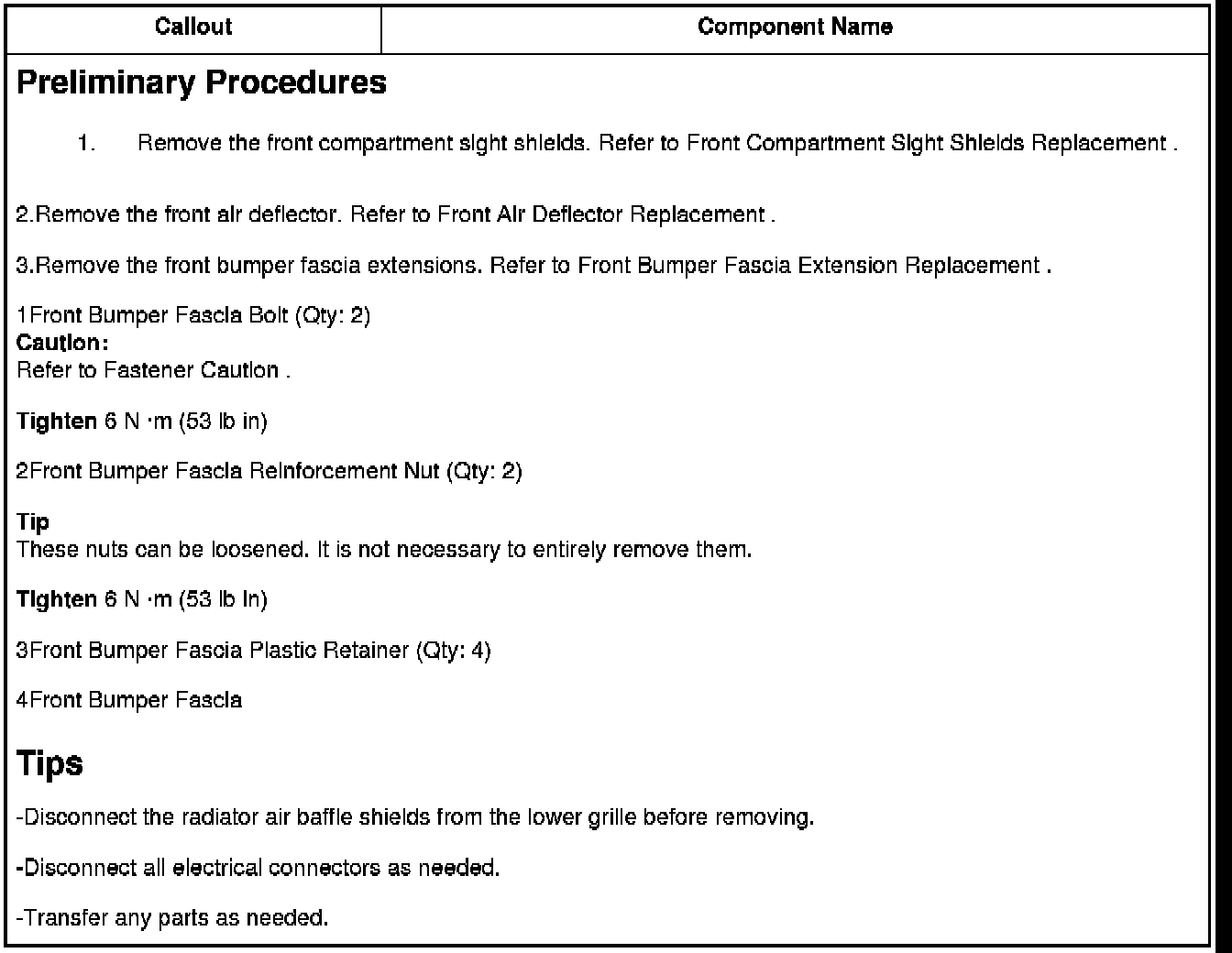

2.Remove the front air deflector. Refer to Front Air Deflector Replacement .

3.Remove the front bumper fascia extensions. Refer to Front Bumper Fascia Extension Replacement .

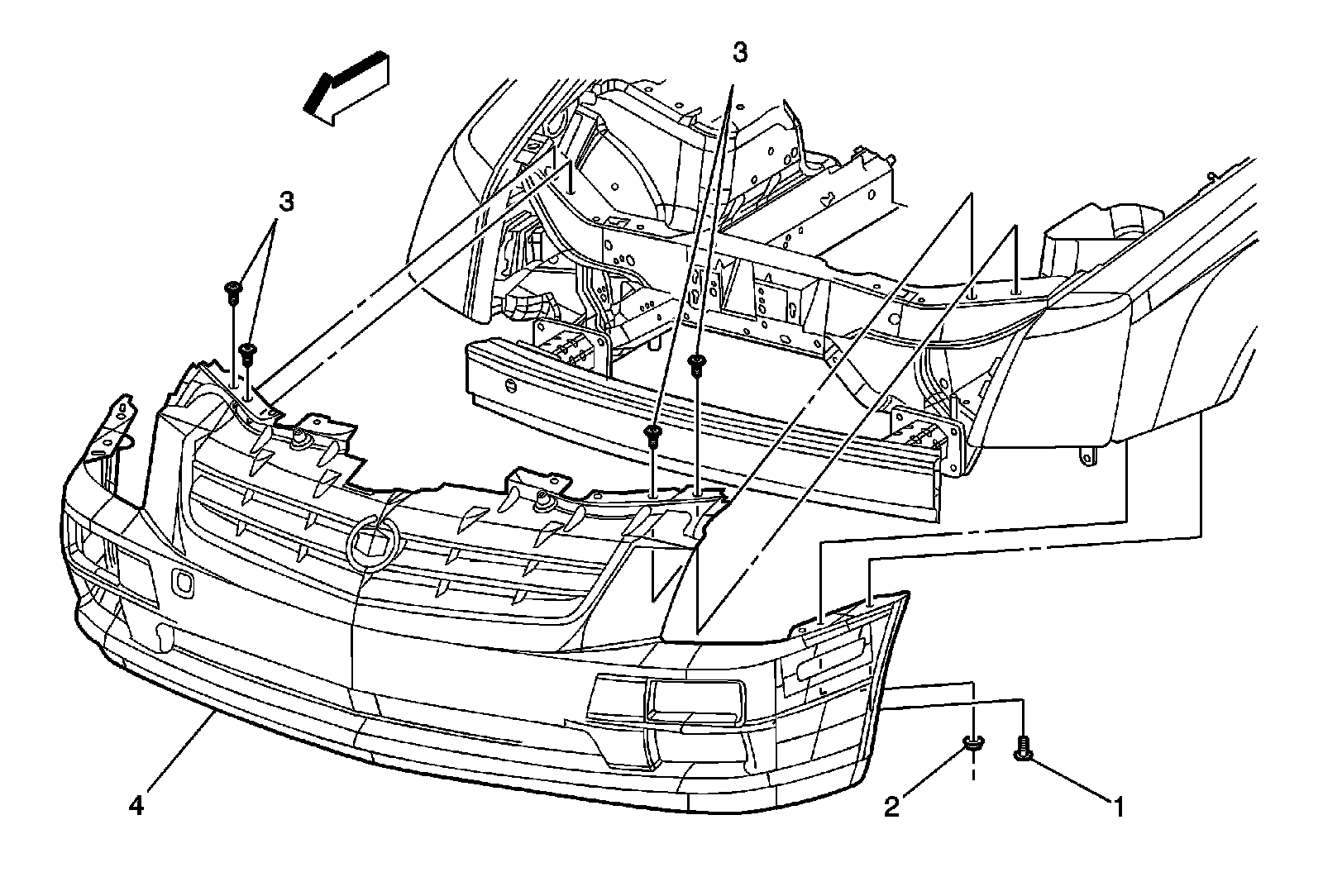

1Front Bumper Fascia Bolt (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 6 N �m (53 lb in)

2Front Bumper Fascia Reinforcement Nut (Qty: 2)
Tip These nuts can be loosened. It is not necessary to entirely remove them.
Tighten 6 N �m (53 lb in)

3Front Bumper Fascia Plastic Retainer (Qty: 4)

4Front Bumper Fascia
Tips

-Disconnect the radiator air baffle shields from the lower grille before removing.

-Disconnect all electrical connectors as needed.

-Transfer any parts as needed.
