Cadillac
>>
2010
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Passenger Seat Schematics
Passenger Seat Schematics
Passenger Seat Schematics

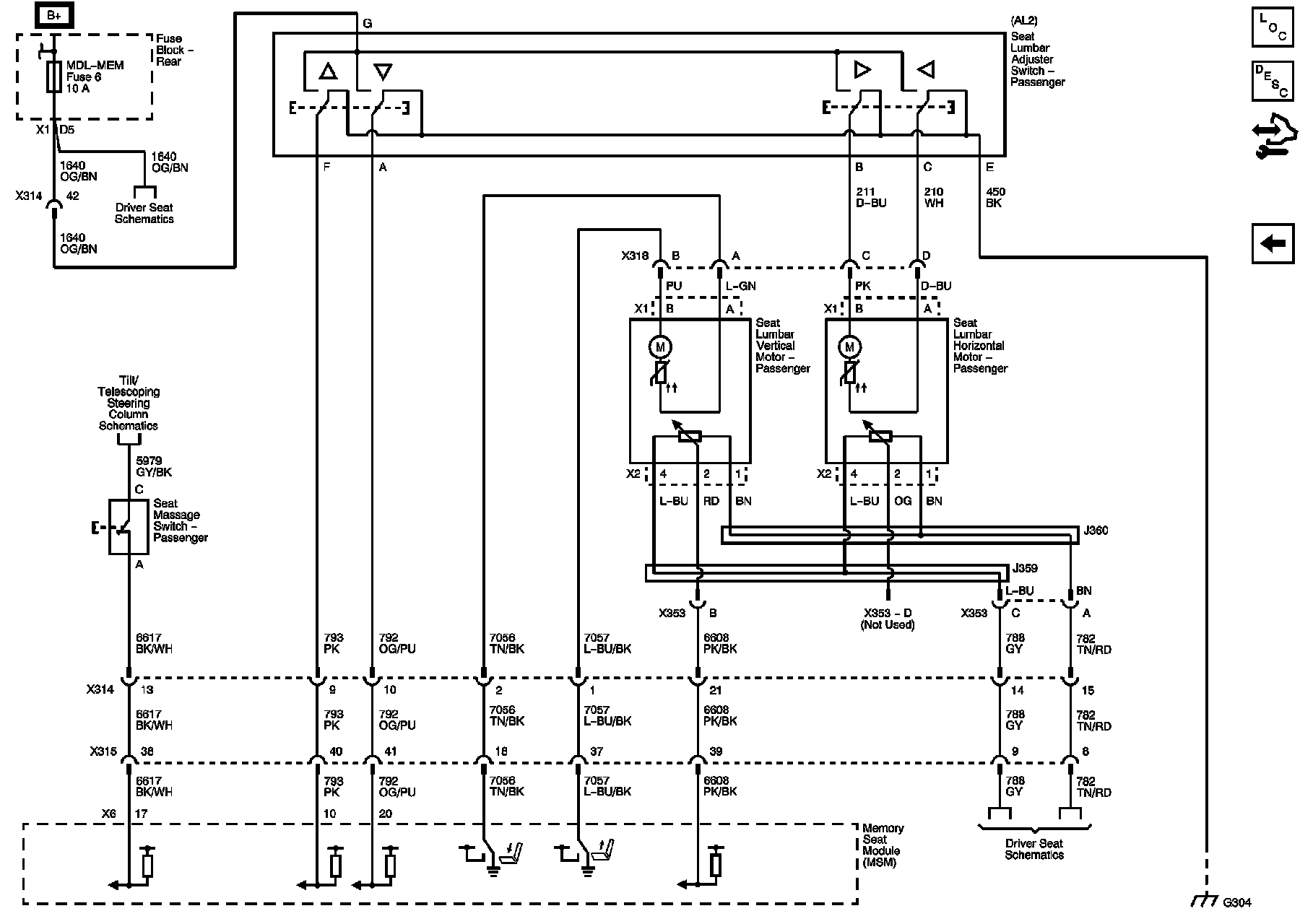

Without AM3

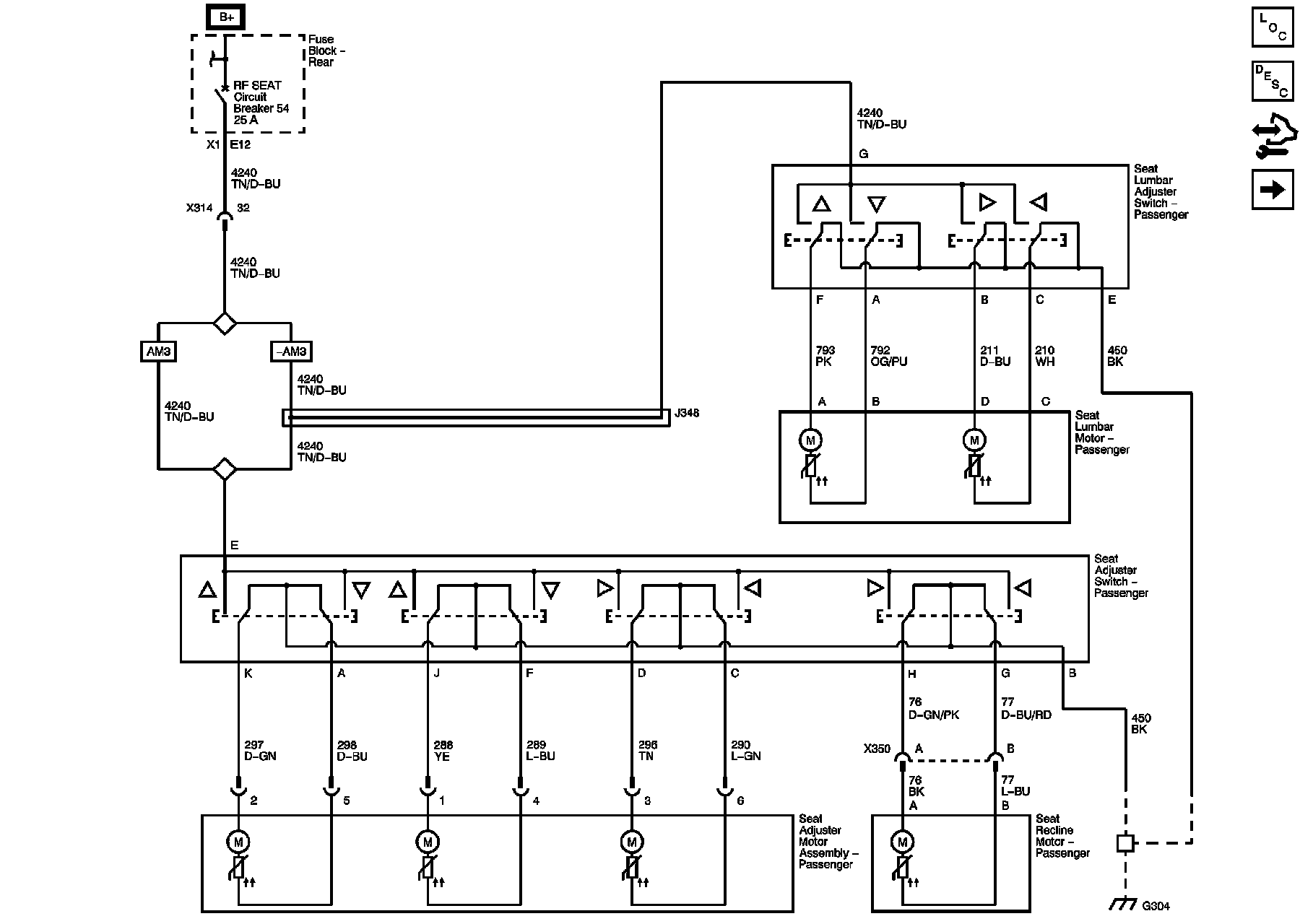

AM3
