X335
X335

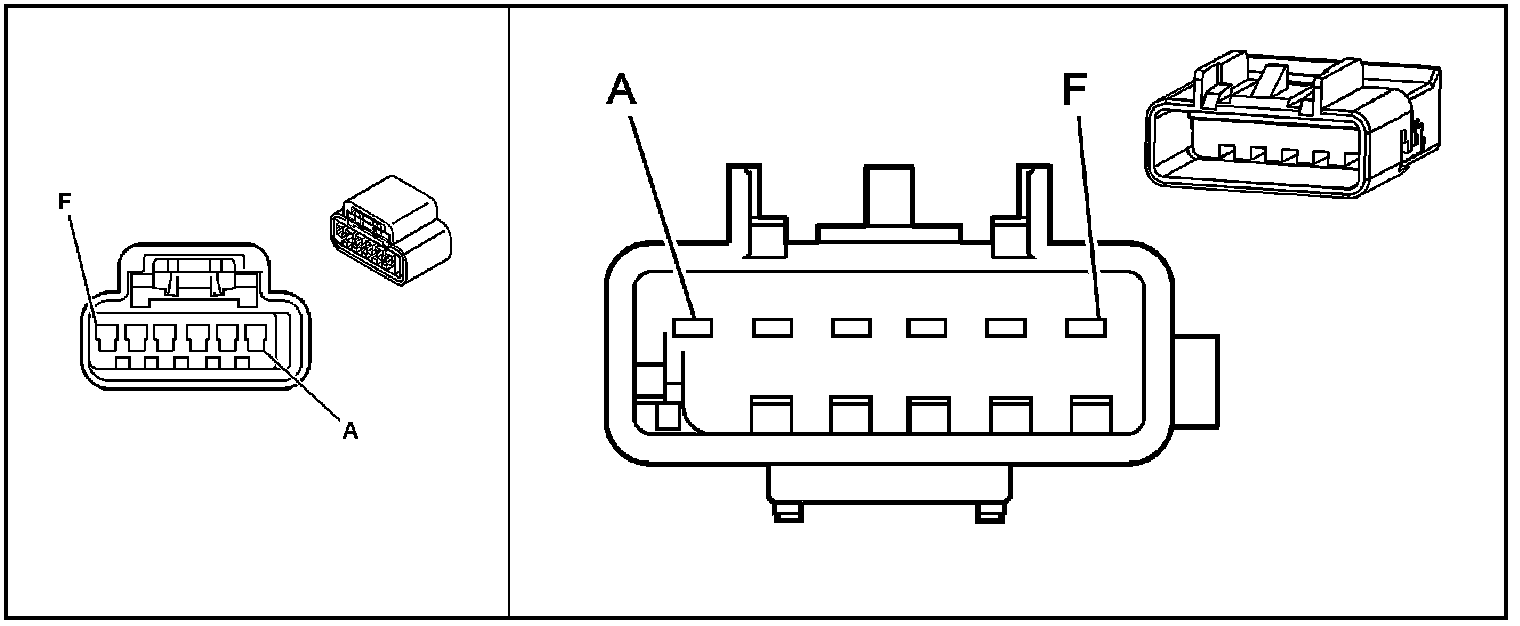

Inline Harness Connector End Views

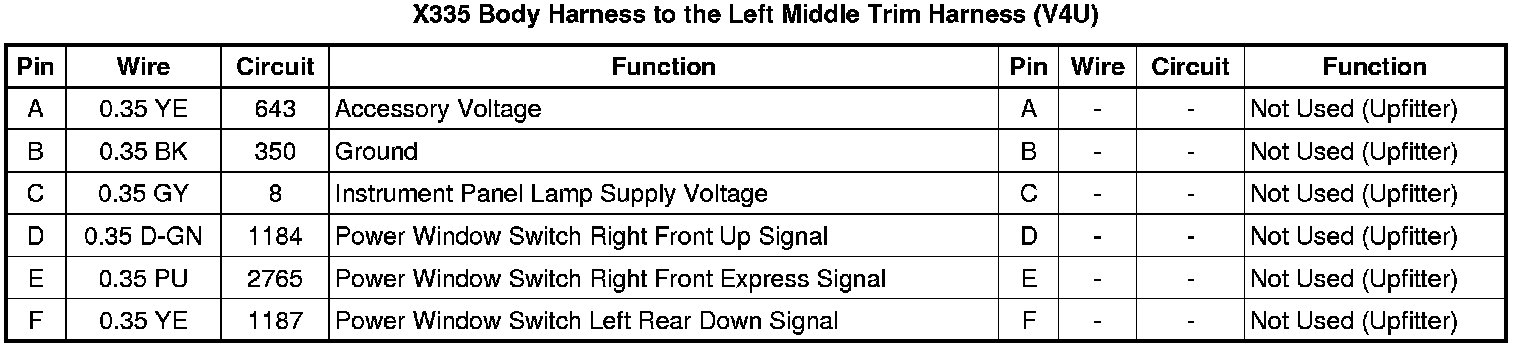

X335 Body Harness to the Left Middle Trim Harness (V4U)
