Home
>>
Cadillac
>>
2010
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Diagrams
>>
Electrical Diagrams
>>
Door Control Module Schematics

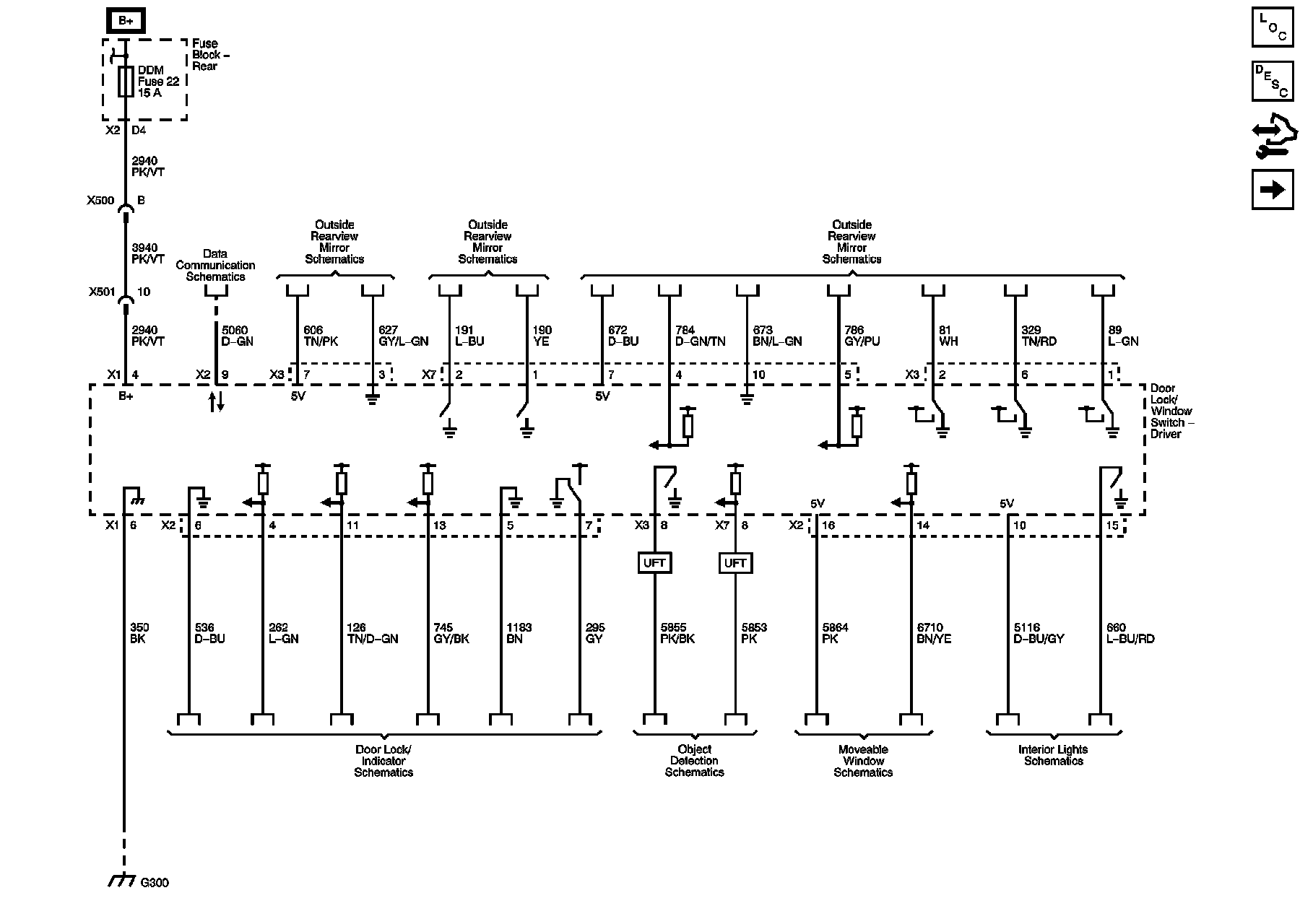

Door Control Module Schematics
Door Control Module Schematics
(DDM)
(PDM)
