Home
>>
Cadillac
>>
2010
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
Transfer Case
Transfer Case

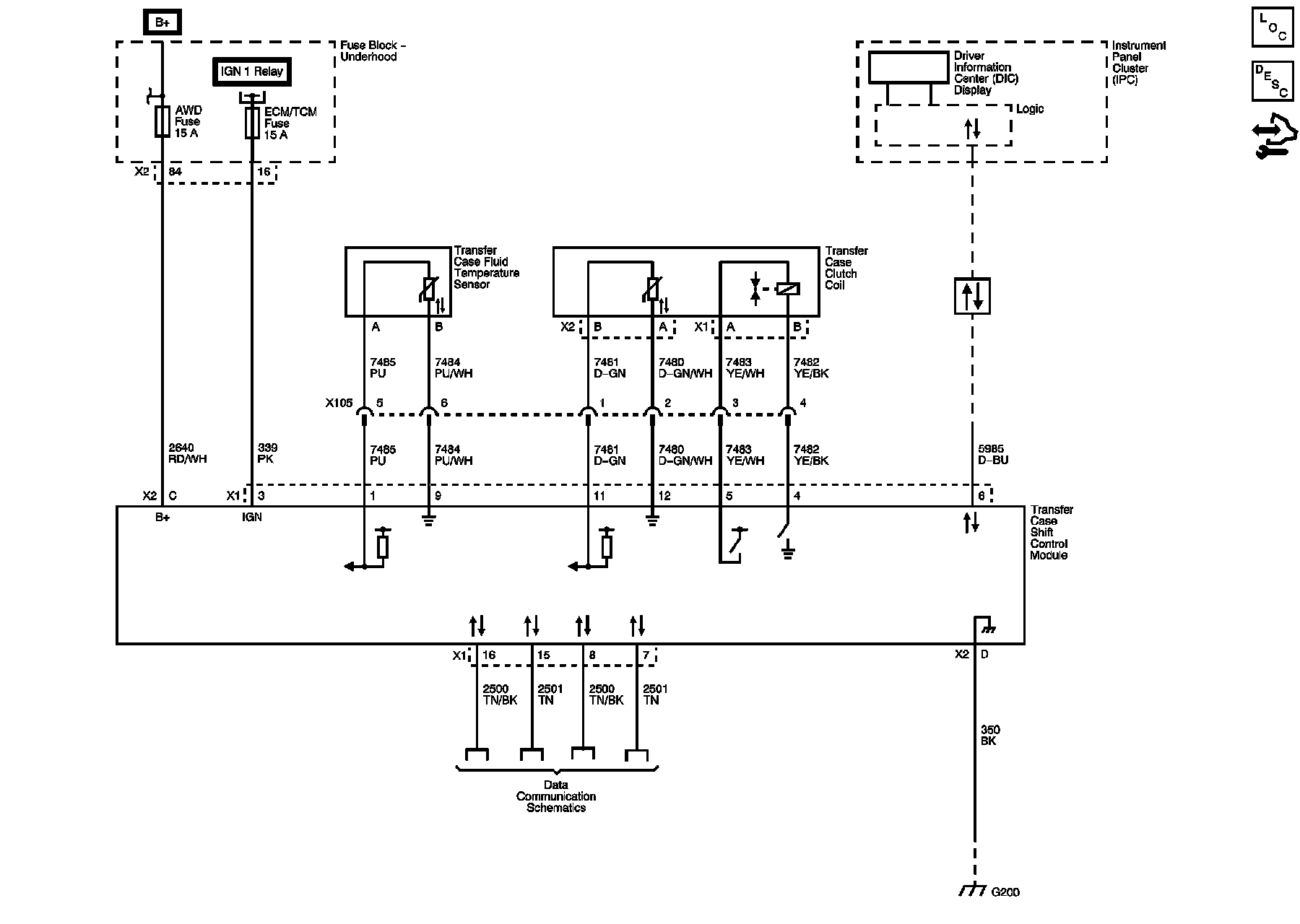

Control Schematics
(MX7)
