X420




Inline Harness Connector End Views

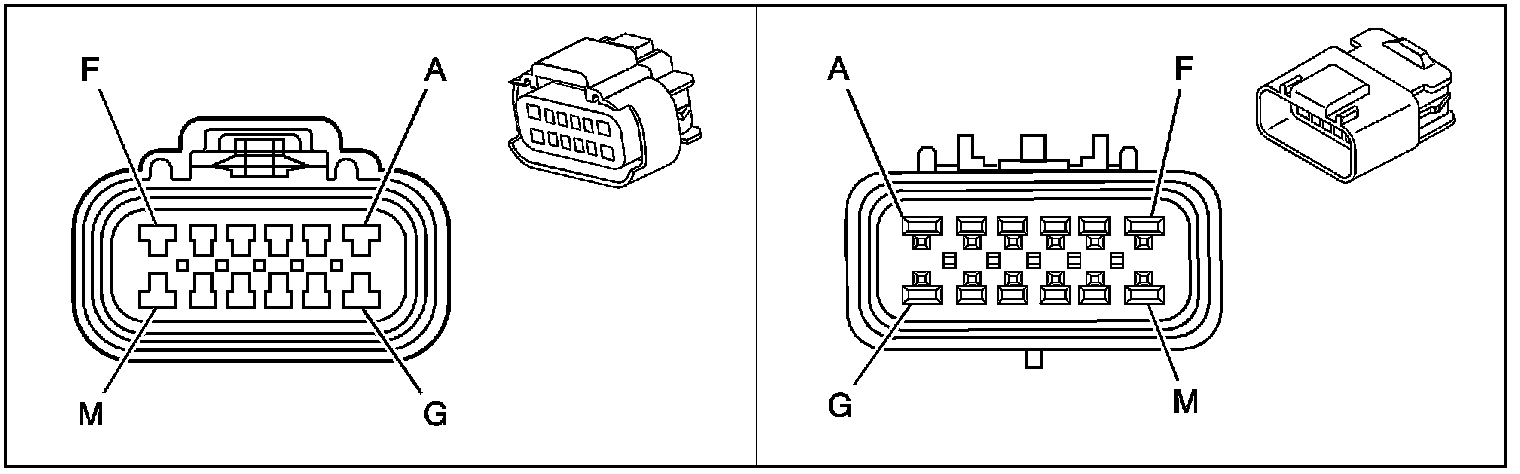

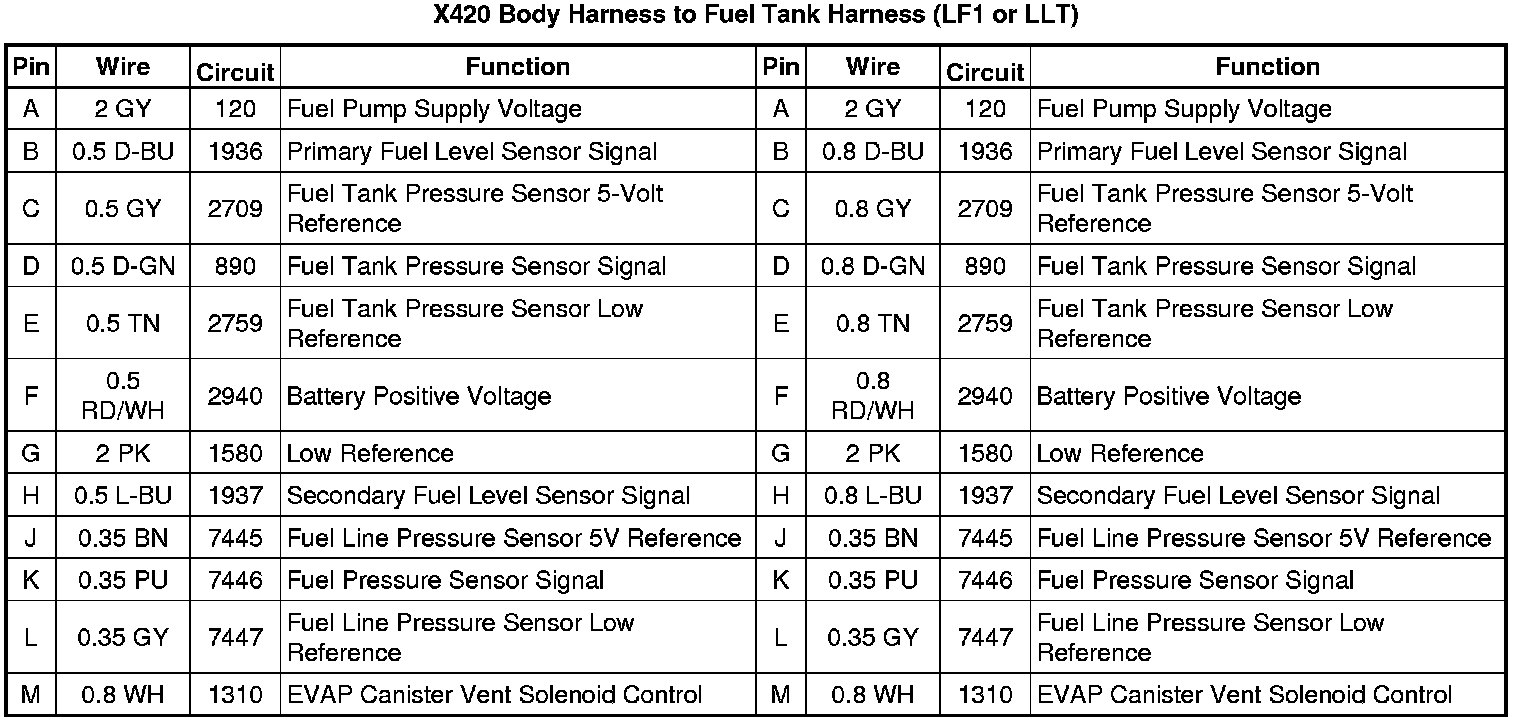

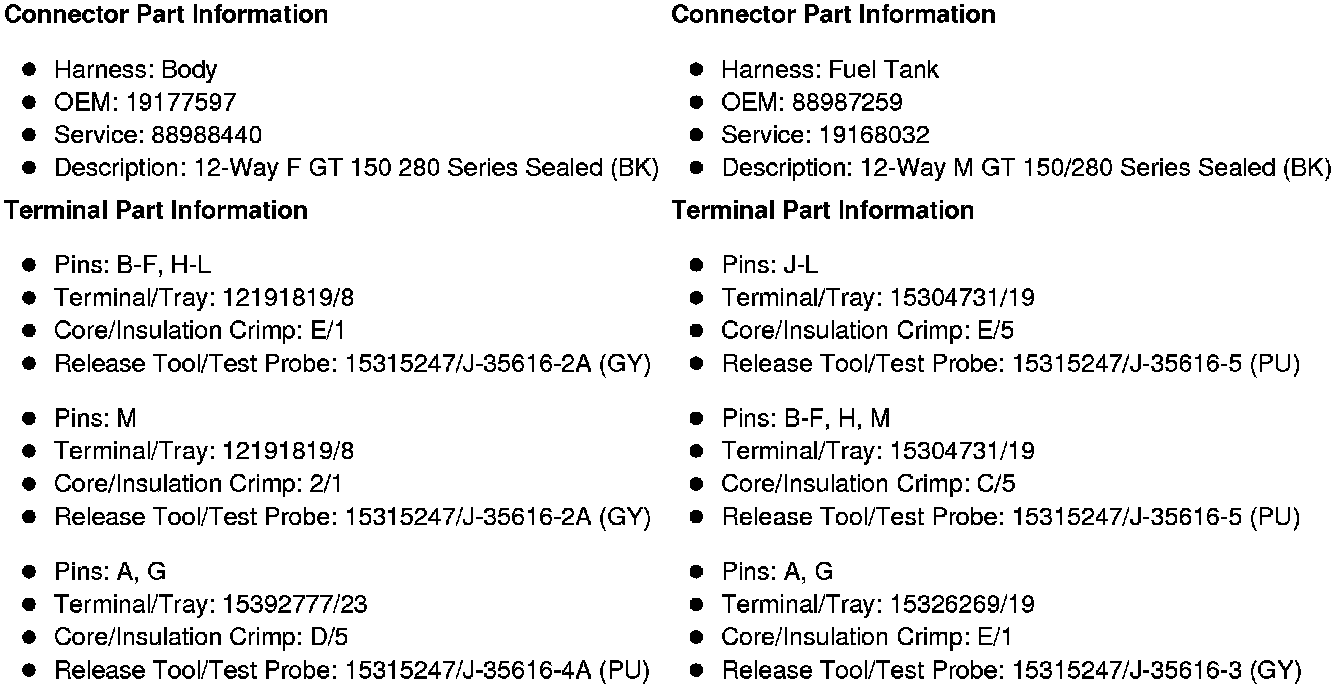

X420 Body Harness to Fuel Tank Harness (LF1 or LLT)

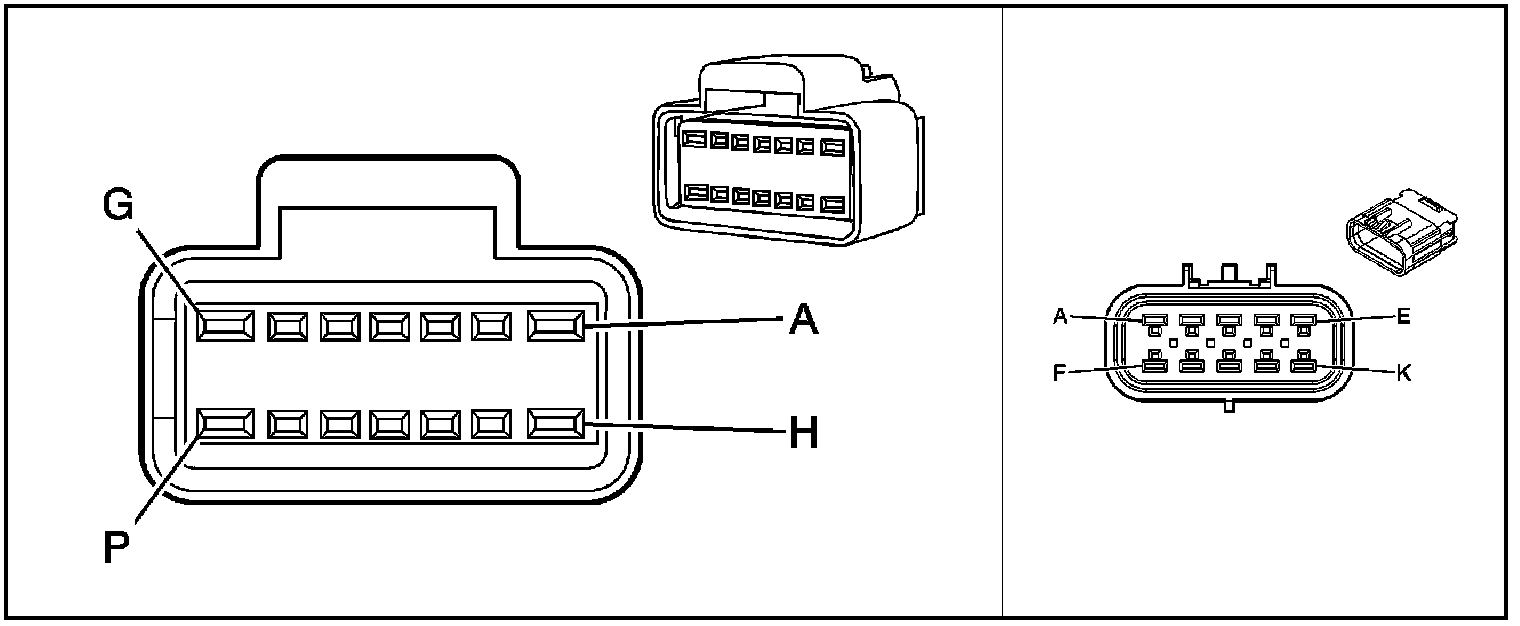

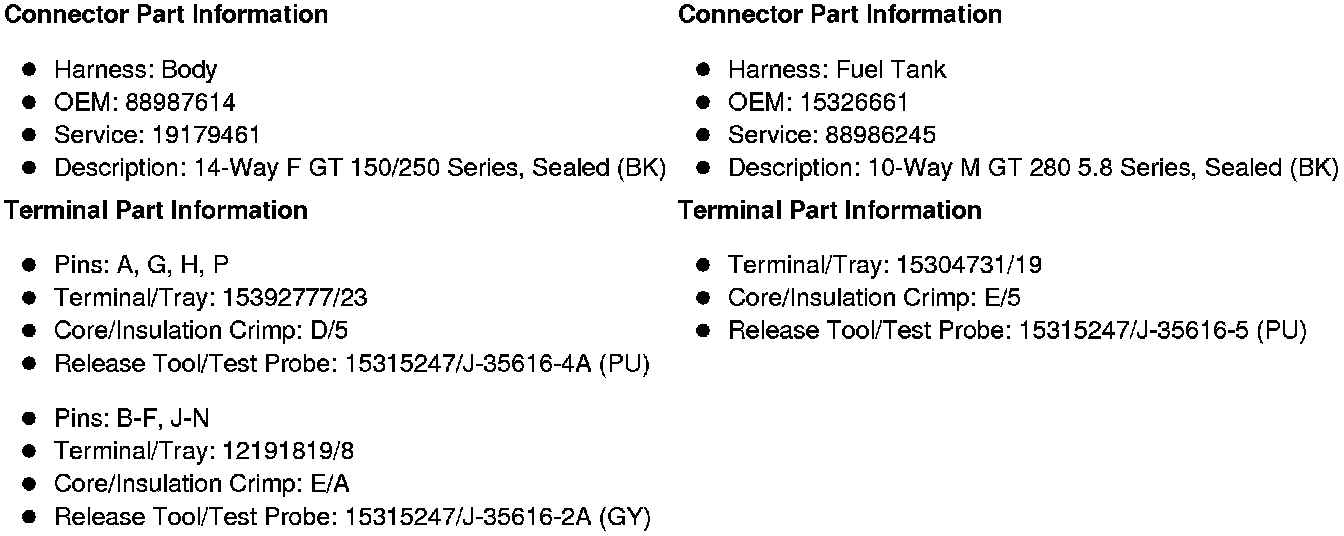

X420 Body Harness to Fuel Tank Harness (LSA)
