Power Steering Pump Replacement

Power Steering Pump Replacement (RPO LH2)

Removal Procedure

1. Remove the power steering fluid reservoir. Refer to Remote Power Steering Fluid Reservoir Replacement (Service and Repair).
2. Remove the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement (RPO LH2) (Service and Repair)Power Steering Pump Pulley Replacement (RPO LC3) (Service and Repair).
3. Remove the following components from the power steering pump:

* The power steering reservoir outlet pipe/hose. Refer to Power Steering Fluid Reservoir Outlet Hose Replacement (Power Steering Fluid Reservoir Outlet Hose Replacement).
* The power steering gear inlet pipe/hose. Refer to Power Steering Gear Inlet Pipe/Hose Replacement (Power Steering Gear Inlet Pipe/Hose Replacement).

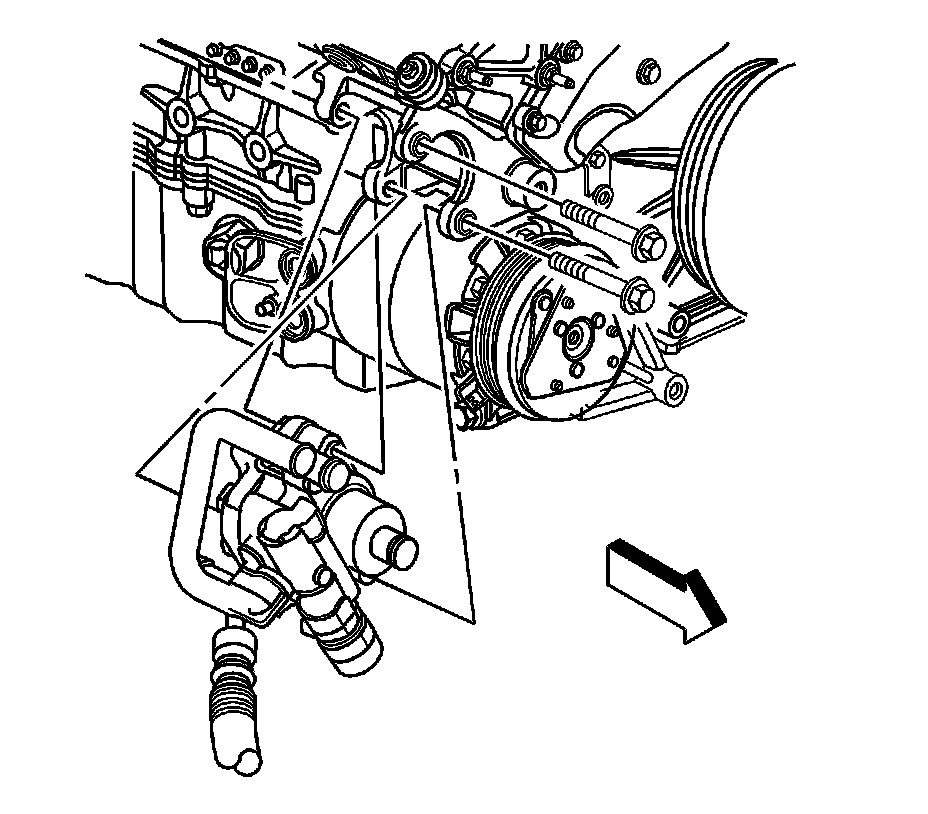

4. Remove the power steering pump mounting bolts from the power steering pump.

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).




1. Install the power steering pump mounting bolts to the power steering pump and tighten to 25 Nm (18 lb ft).
2. Install the following components to the power steering pump:

* The power steering reservoir outlet pipe/hose. Refer to Power Steering Fluid Reservoir Outlet Hose Replacement (Power Steering Fluid Reservoir Outlet Hose Replacement).
* The power steering gear inlet pipe/hose. Refer to Power Steering Gear Inlet Pipe/Hose Replacement (Power Steering Gear Inlet Pipe/Hose Replacement).

3. Install the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement (RPO LH2) (Service and Repair)Power Steering Pump Pulley Replacement (RPO LC3) (Service and Repair).
4. Install the power steering fluid reservoir. Refer to Remote Power Steering Fluid Reservoir Replacement (Service and Repair).
5. Fill and bleed the power steering system. Refer to Power Steering System Bleeding (Service and Repair).
