Home
>>
Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Clockspring Assembly / Spiral Cable
>>
Diagrams
>>
Inflatable Restraint Steering Wheel Module Coil X5
Inflatable Restraint Steering Wheel Module Coil X5

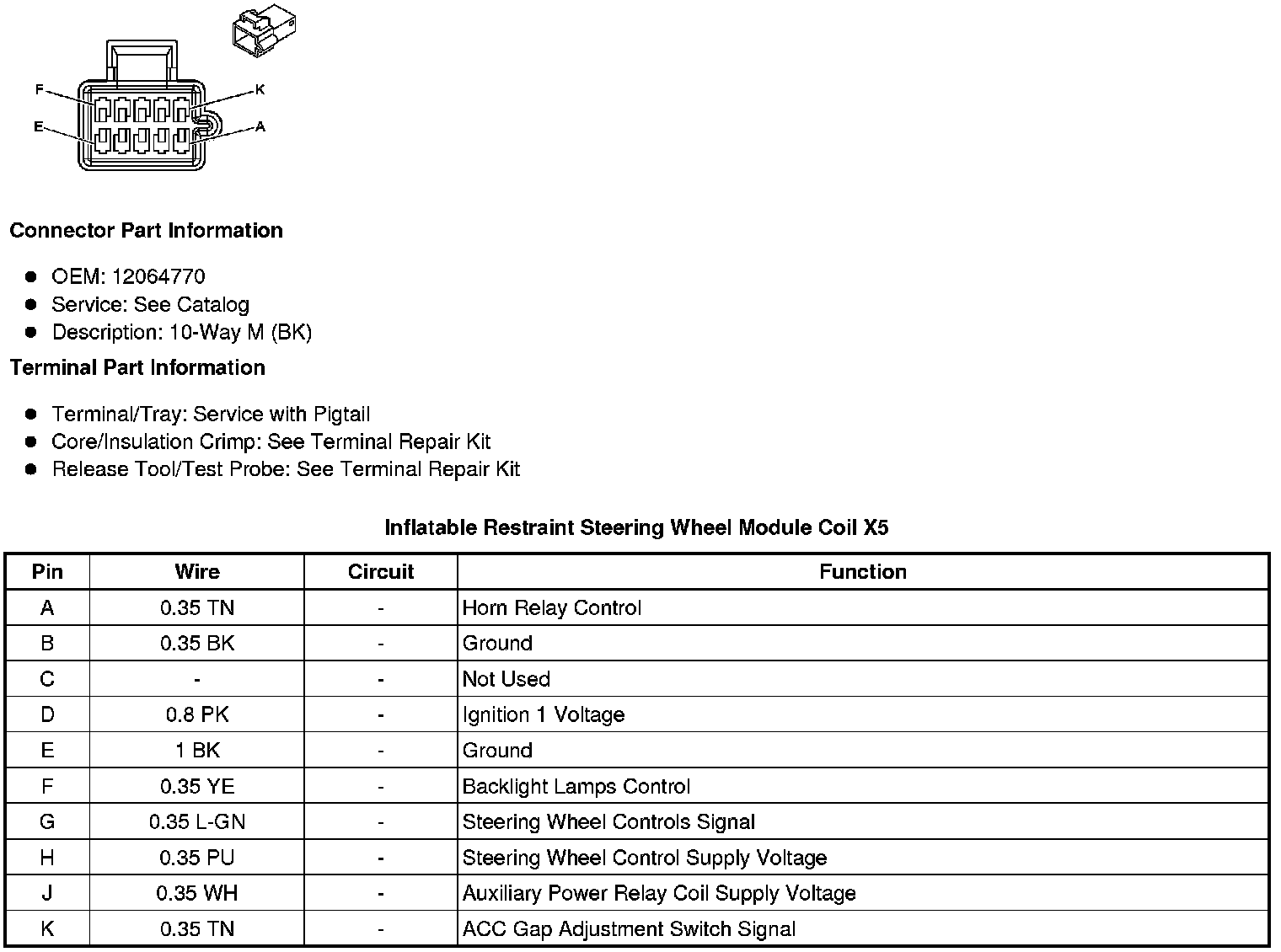

Component Connector End Views
Inflatable Restraint Steering Wheel Module Coil X5
