Power Seat Motor
>>
Seat Recline Motor - Driver X1
Seat Recline Motor - Driver X1

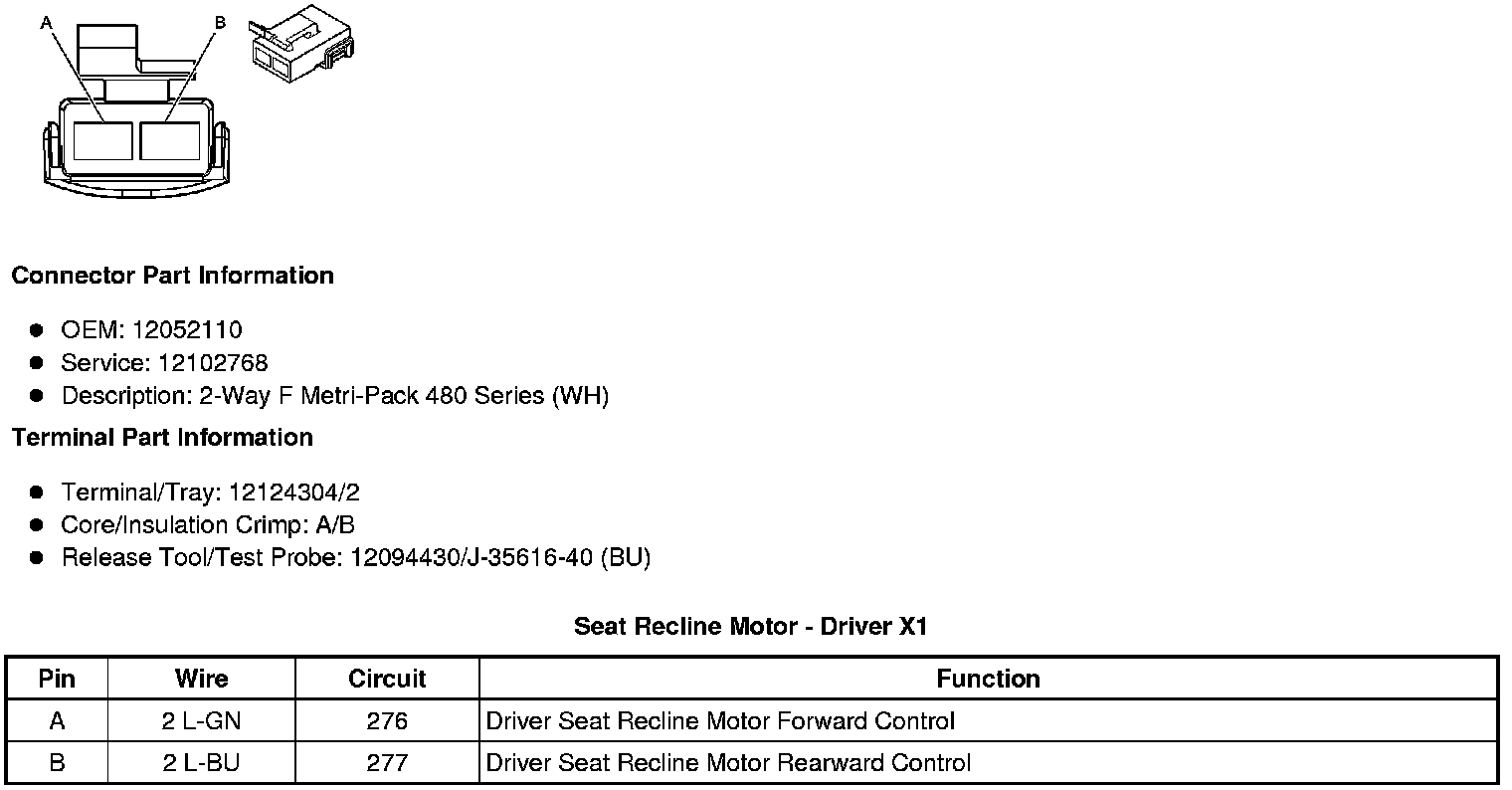

Component Connector End Views
Seat Recline Motor - Driver X1
