Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>
Seat Adjuster Motor Assembly - Driver X4
Seat Adjuster Motor Assembly - Driver X4

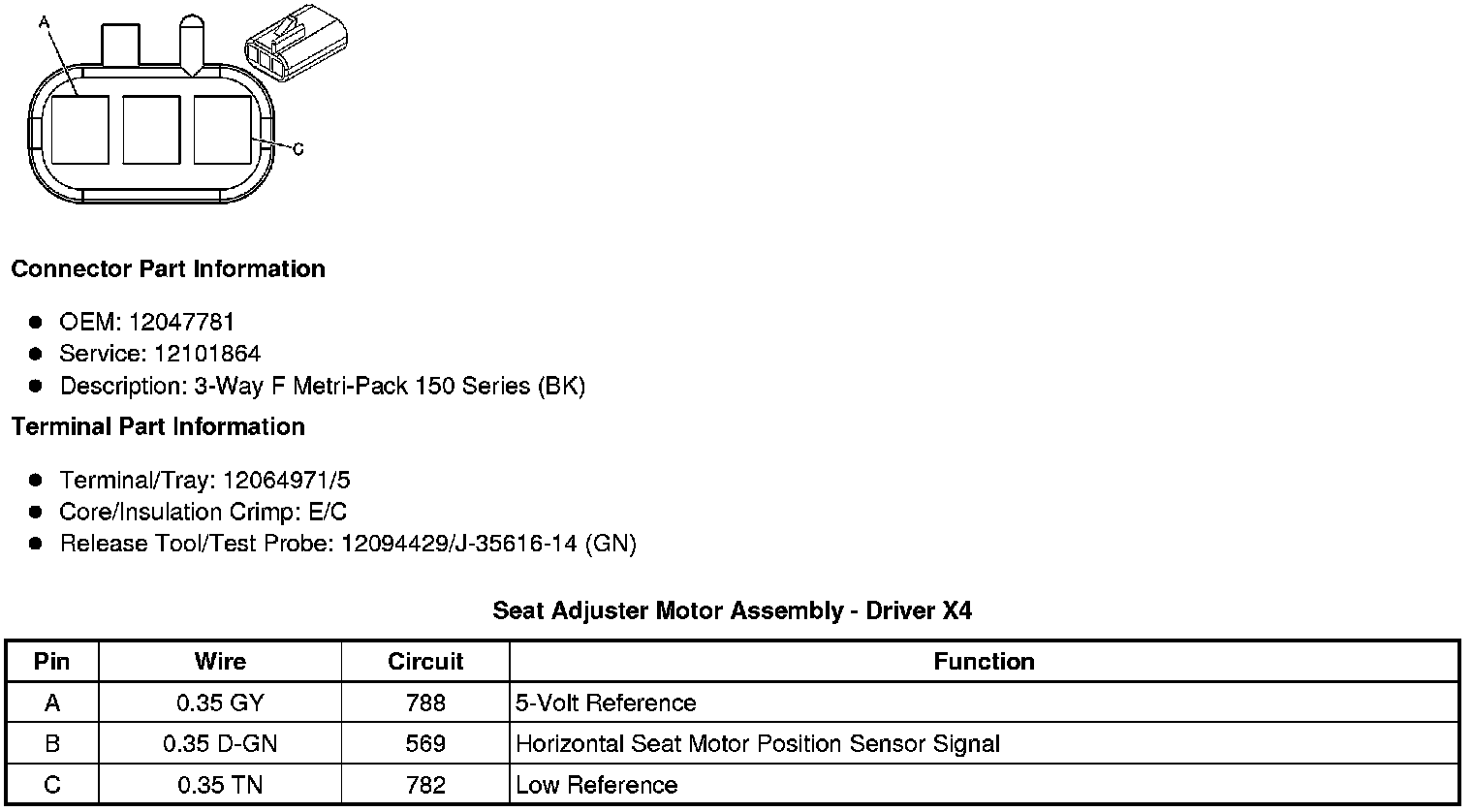

Component Connector End Views
Seat Adjuster Motor Assembly - Driver X4
