X501
X501

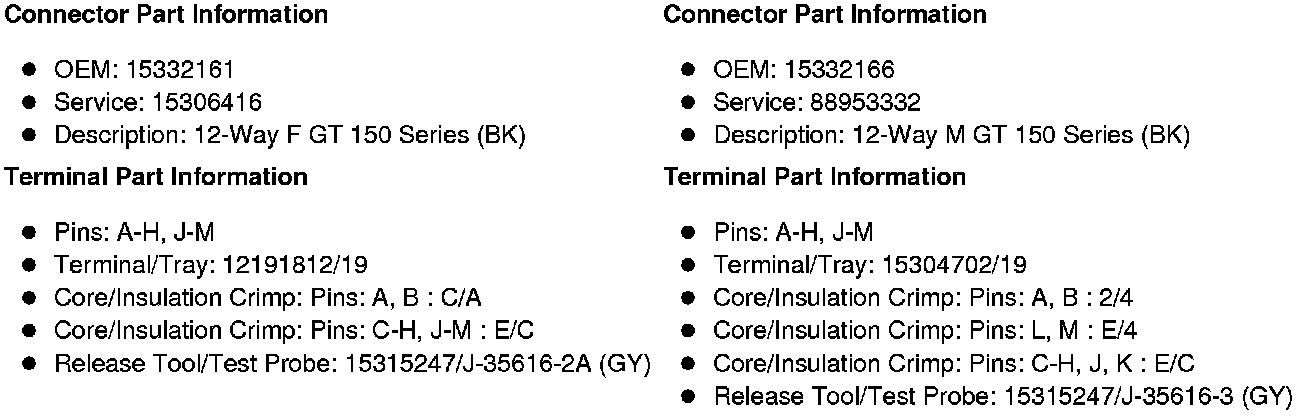

Inline Harness Connector End Views

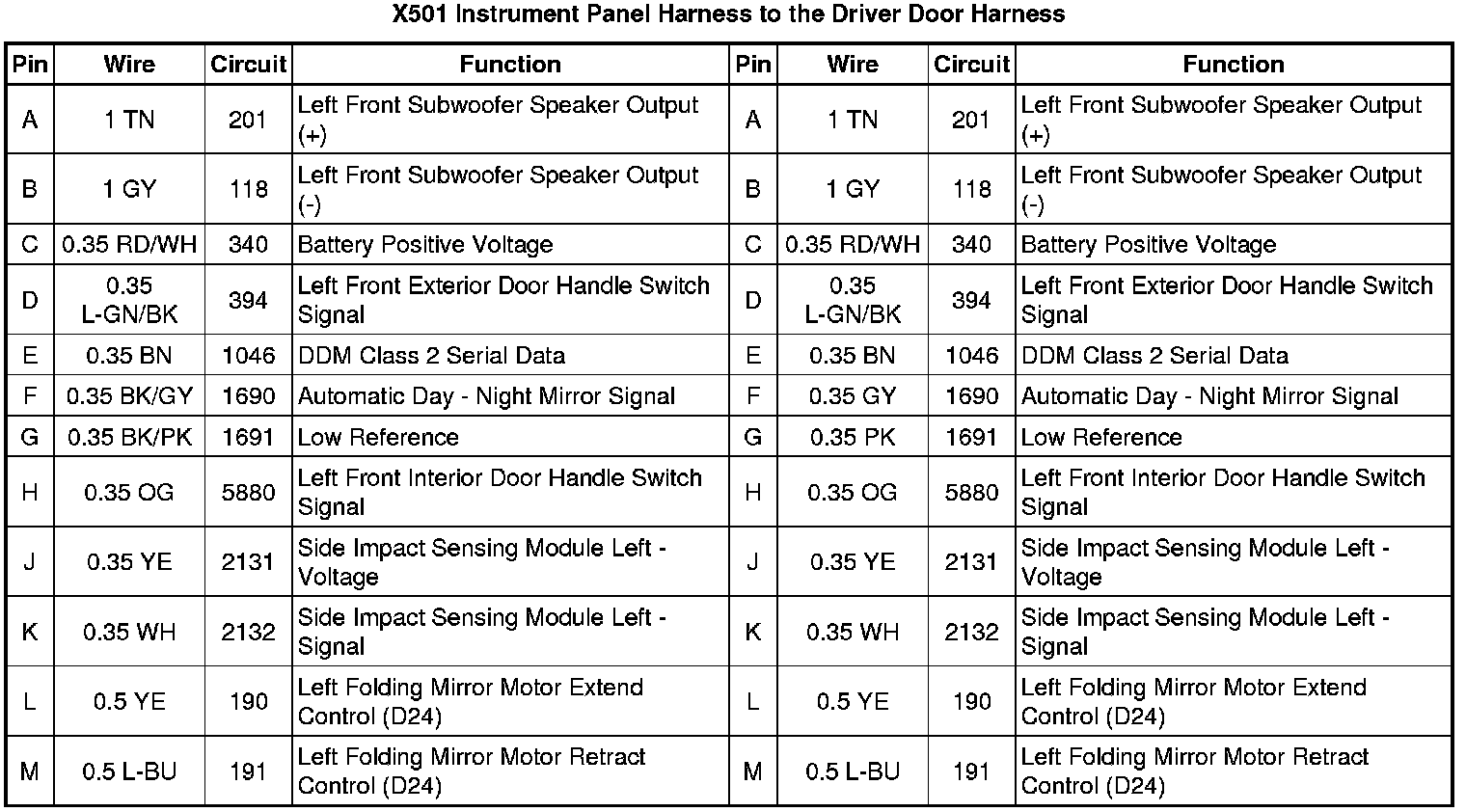

X501 Instrument Panel Harness to the Driver Door Harness
