X440

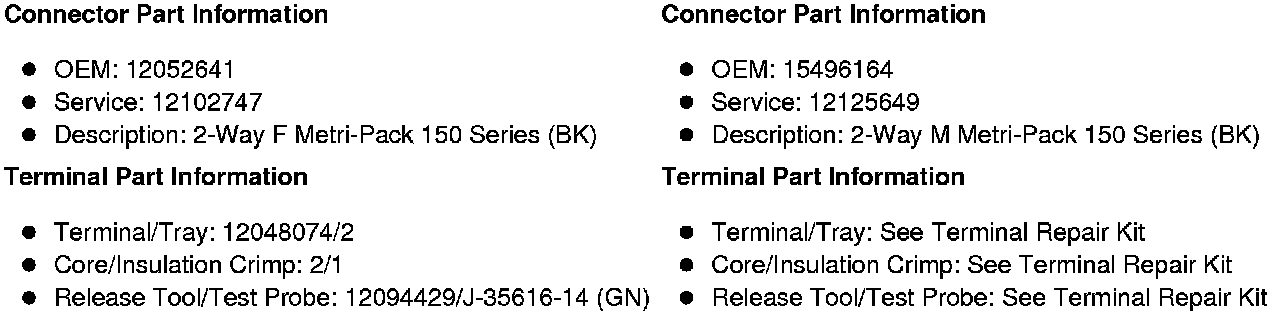

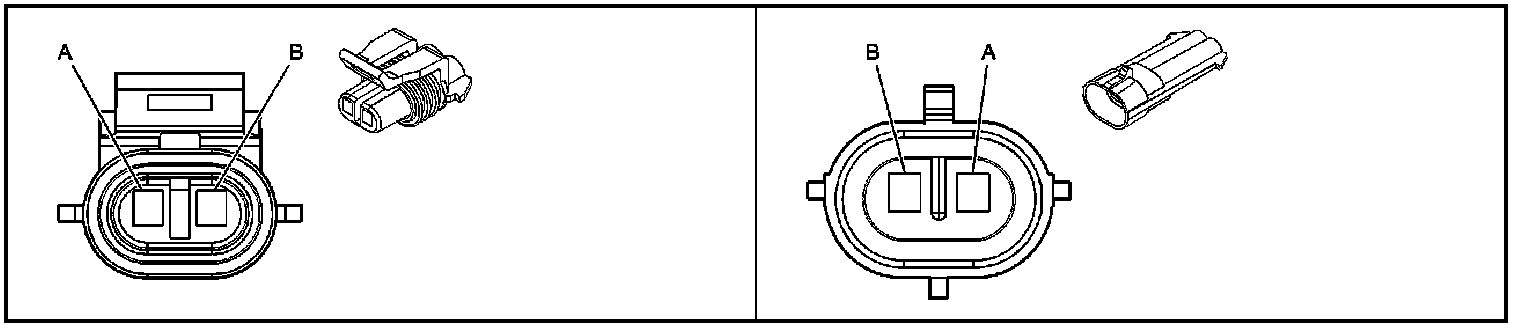

Inline Harness Connector End Views

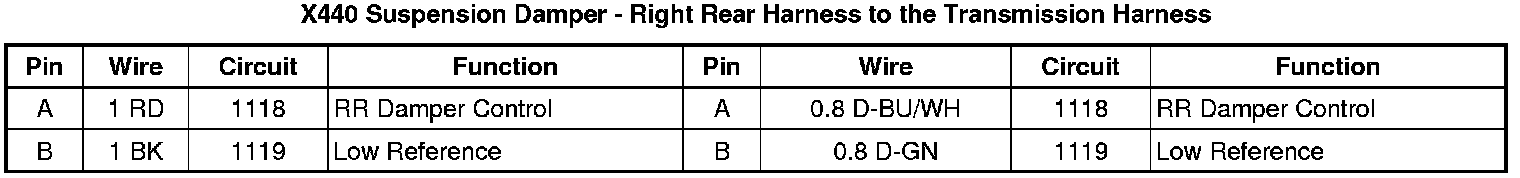

X440 Suspension Damper - Right Rear Harness to the Transmission Harness
