Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
Headlamp Control Module
Headlamp Control Module

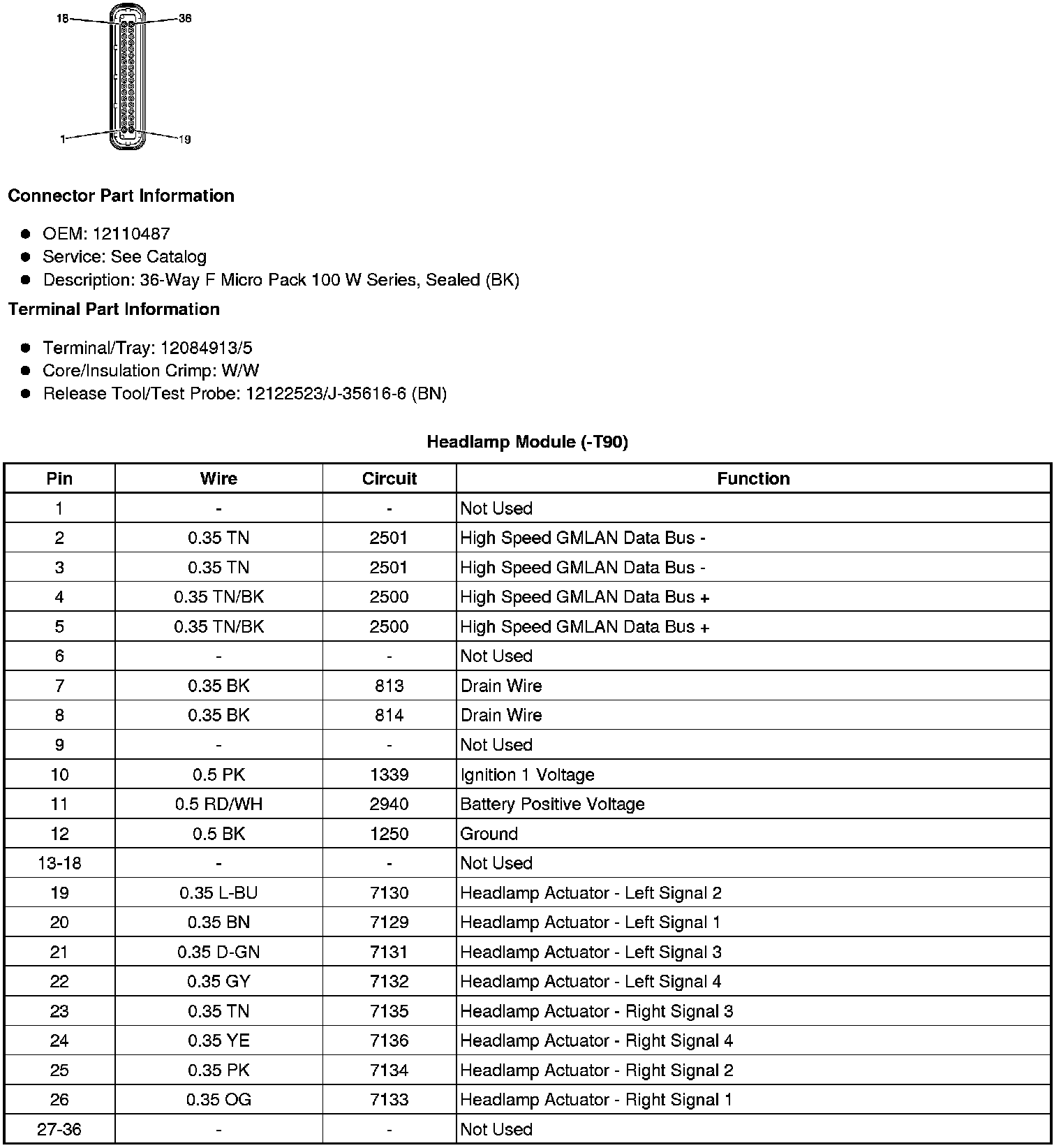

Component Connector End Views
Headlamp Module (-T90)
