Antenna Control Module
>>
Radio Antenna Module - Left
Radio Antenna Module - Left

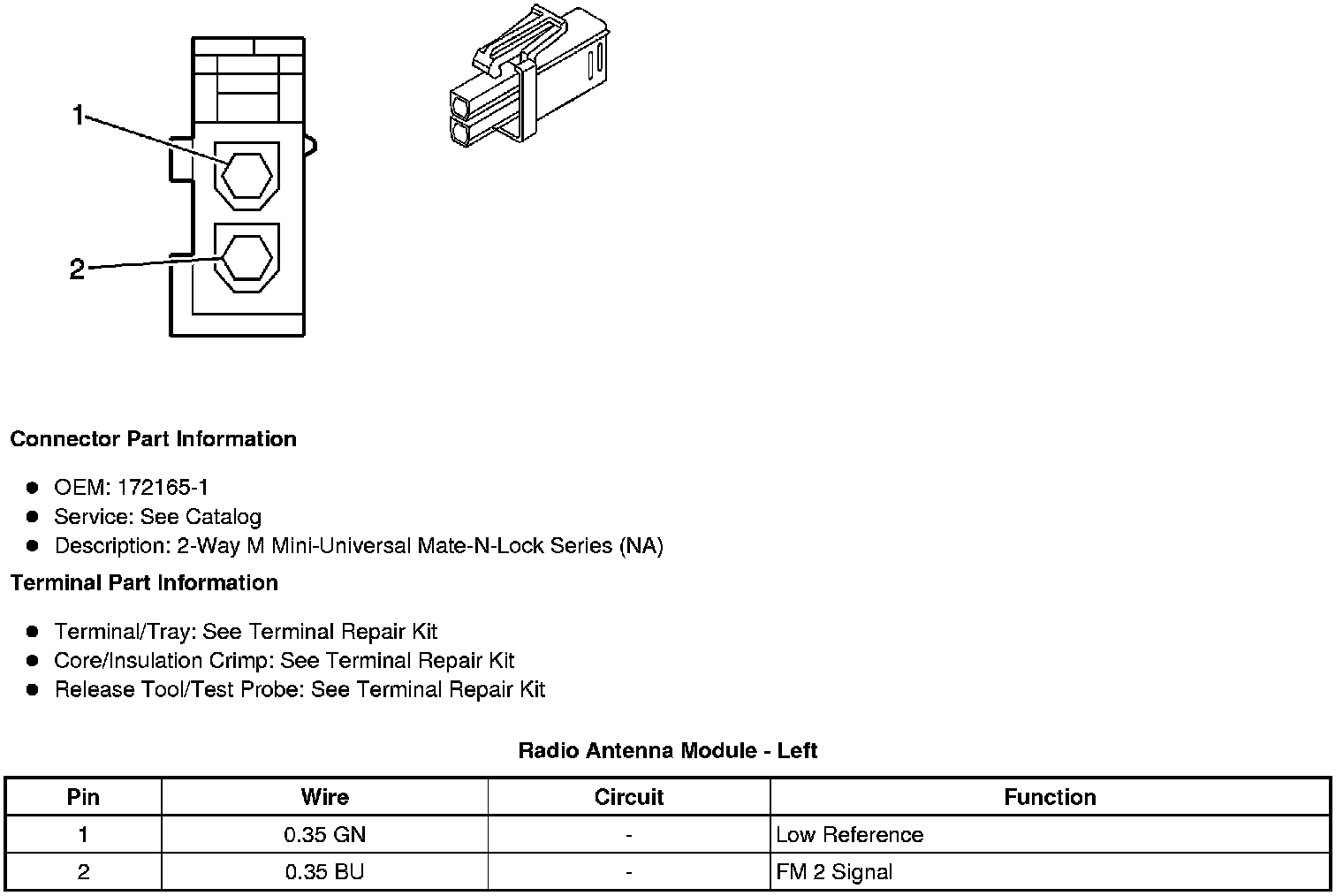

Component Connector End Views
Radio Antenna Module - Left
