Home >> Cadillac >> 2009 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Telescoping Wheel Motor >> Diagrams

Telescoping Wheel Motor: Diagrams

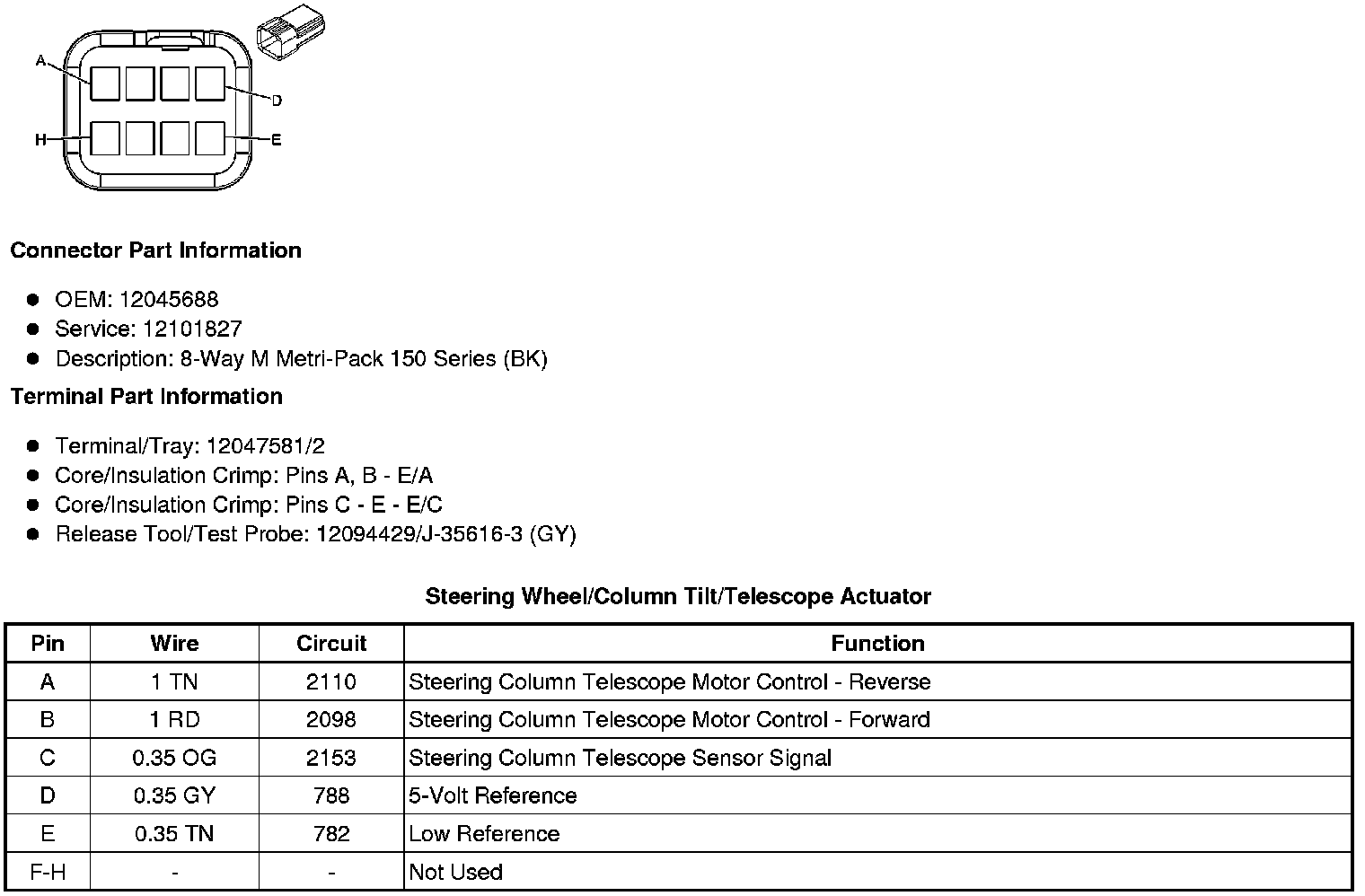

Component Connector End Views

Steering Wheel/Column Tilt/Telescope Actuator
