Exhaust Tail Pipe Flow Valve Control Module X2

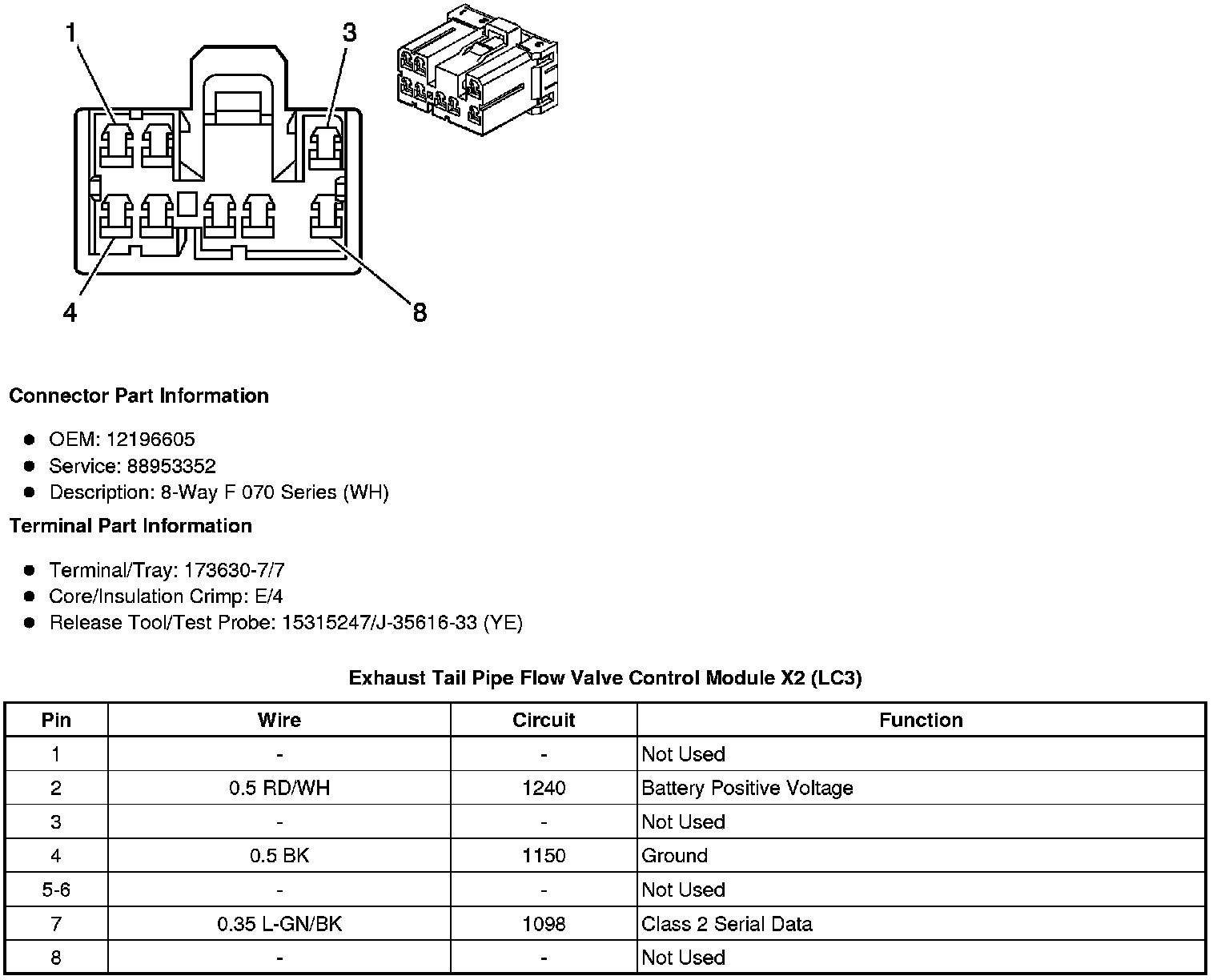

Component Connector End Views

Exhaust Tail Pipe Flow Valve Control Module X2 (LC3)
