Cadillac
>>
2009
>>
XLR V8-4.4L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Coil
>>
Diagrams
>>
Ignition Coil 7
Ignition Coil 7

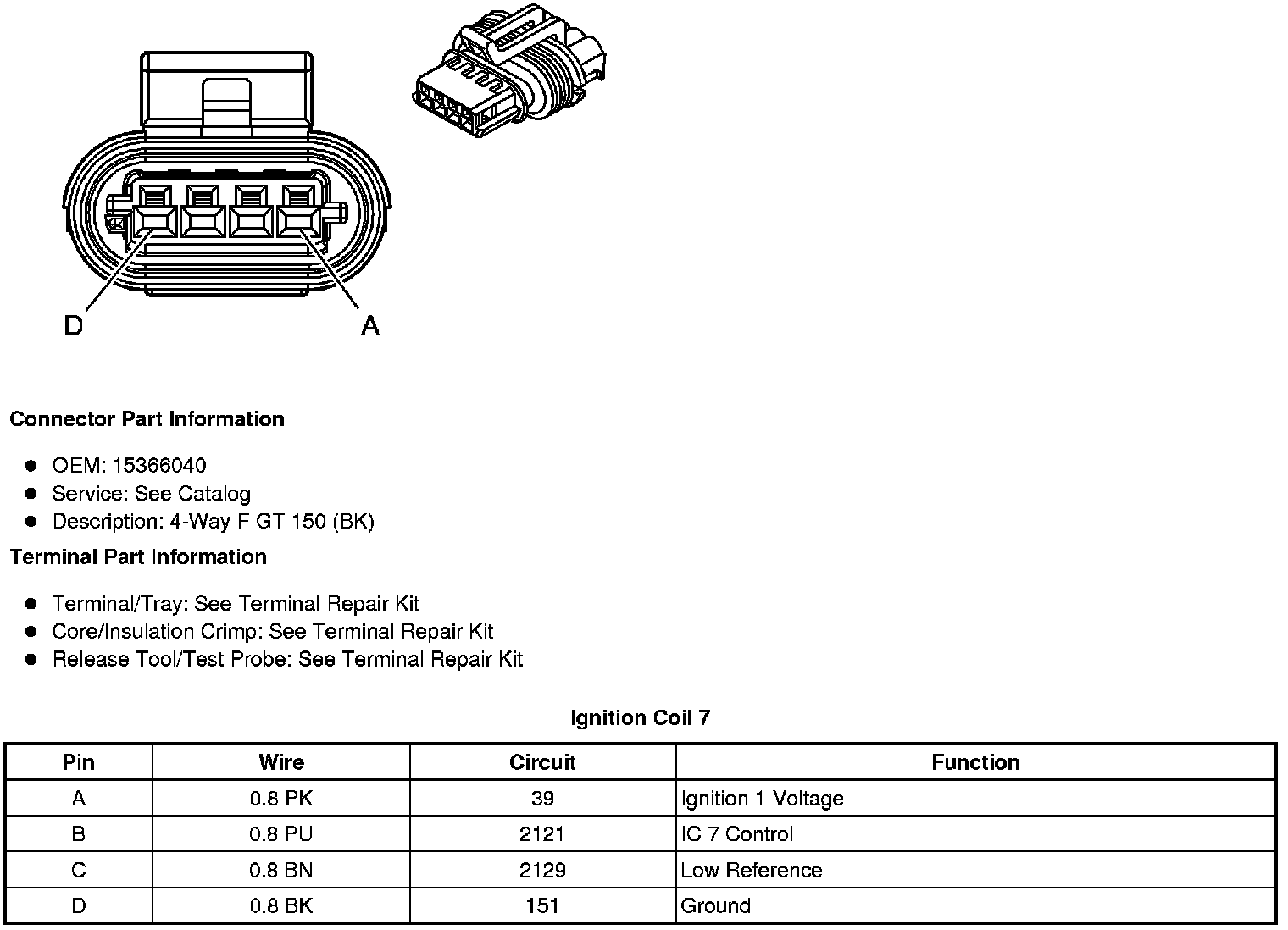

Component Connector End Views
Ignition Coil
7
