Rear Compartment Courtesy Lamp - Left
Rear Compartment Courtesy Lamp - Left

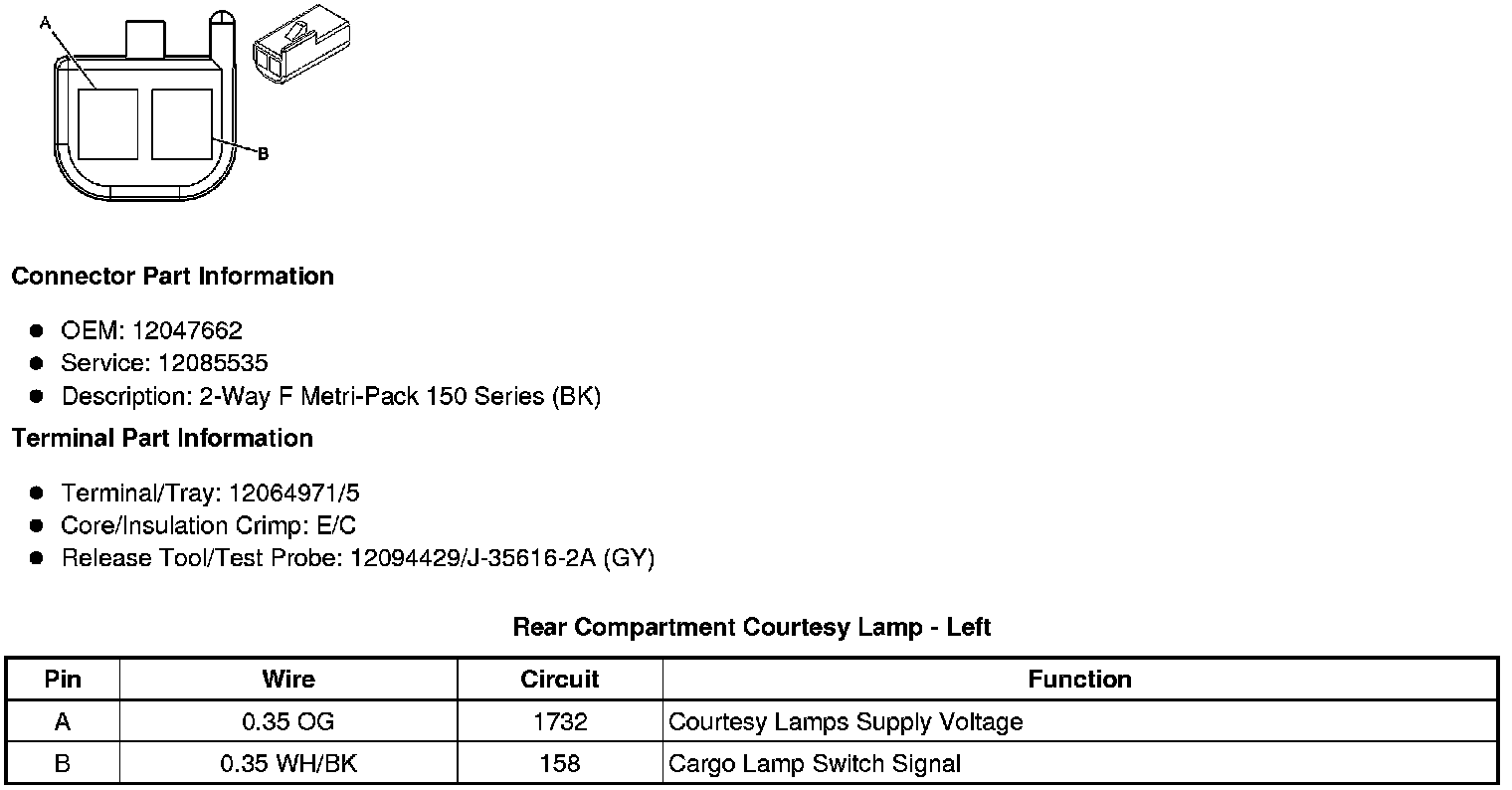

Component Connector End Views
Rear Compartment
Courtesy Lamp
- Left
